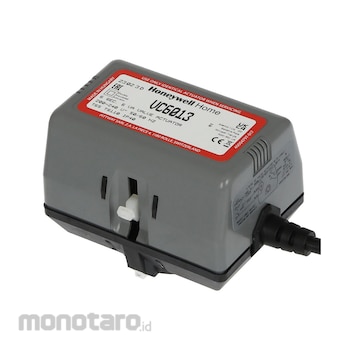

HONEYWELL FCU Motorized Valve
#Grup produk P111638170
Spesifikasi
| Actuator Electrical Rating | IP40 |
|---|---|
| Actuator Power Consumption (VA) | 6 (when valve position changes) |
| Actuator Voltage (V) | 24, 50 Hz (blue label) or 230, 50 Hz (red label) |
| Ambient Temperature (°C) | Max. 65 |
| Auxiliary Switch Rating (A) | 1.0 @ 250 V, 50-60 Hz (minimum 0.05 A @ 24 Vdc) |
| Differential Pressure (bar) | Max. 4 |
| Humidity Range (%RH) | 5 to 95 (non-condensing) |
| Medium | Water or water-glycol mixture (max. 50% glycol content), quality to VDI 2035 |
| Operating Pressure (bar) | Max. 20 |
| Operating Temperature (°C) | 1 to 95, 120 short duration peak |
| PH Value | 8 to 9.5 |
| Runtime (s) | 6 on/off actuators, 120 floating or modulating actuators |
| Storage Temperature (°C) | -40 to 65 |
