APPLICATION

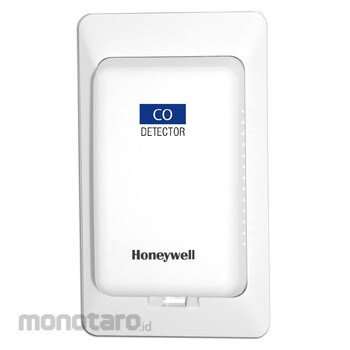

GD250W4NB is IAQ(Indoor Air Quality) sensor, which is designed to detect carbon monoxide gas in the air. This model has high accuracy at low concentration, so it is optimum for parking lot, tunnel and under ground places. Also, the advantage of this model is compact size and easy installation.
HONEYWELL Co Gas Detector
#Grup produk P111637959
Spesifikasi
| Accuracy | +/-5% FS for 0-100ppm; +/- 10% FS for 100-250ppm |
|---|---|
| Coverage Area (m²) | 465 (recommended) |
| Detection Range (ppm) | 0-250 |
| Dimensions (mm) | 70x122x32 |
| Gas Detected | Carbon monoxide (CO) |
| Operating Humidity (%RH) | 10 to 95 (no condensing) |
| Operating Temperature (°C) | 0 to 50 |
| Output Signal | 2 to 10Vdc (default) or 4 to 20mA (selectable by jumper) |
| Power Supply | 24Vac 50/60Hz, 24Vdc, +/- 20% |
| Protection Class | IP30 |
| Response Time (minute) | Within 5 |
| Sensor Type | Semiconductor |
| Storage Humidity (%RH) | 10 to 95 (no condensing) |
| Storage Temperature (°C) | -20 to 60 |
| Warming Up Time (hour) | Min. 2 |
| Wiring | 3 or 4 wire compatible |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
· High sensitivity and selectivity to carbon monoxide· Low sensitivity to alcohol vapor
· Solid state sensor
