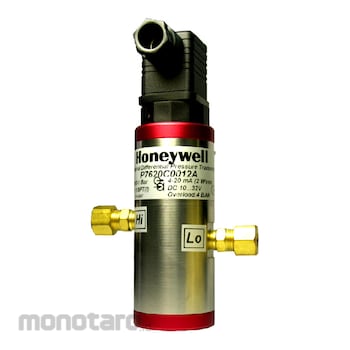

The P7620C ceramic cell differential pressure transmittersand transducers have been designed for most industrial pressure measurement applications at high quality performance and precision accuracy requirement including fluids and gases. The ceramic cell and metallic wetted parts can be compatible with majority of aggressive process fluids. The output signal of the sensing bridge is in converted to be a standardized current or voltage signal through surface mount technology circuit board. This high level signal output with very low noise system is packaged in a rugged stainless steel housing to resist the harsh and extreme environment conditions. Each transmitter is inspected and calibrated to ensure its 100% quality.
APPLICATIONS:
- Industrial OEM equipments
- Compressor controls
- Pneumatic systems
- Pump applications
- HVAC systems
- Liquid level measurements
- Energy and water managements
HONEYWELL Butterfly Type Modulating
#Grup produk P111637834
Spesifikasi
| Accuracy | < ± 0.5% F.S. at 25°C (Linearity, Hysteresis, Repeatability) |
|---|---|
| Ceramic Sensor | Aluminium Oxide Al2O3 (96%) |
| Compensated Range (°C) | -40 to 135 |
| Electrical connector | Terminal Box to DIN43650A (IP 65) |
| Full Scale Temperature (FS/°C) | TC-0<0.04% |
| Housing | 304 Stainless Steel |
| Load Resistance (Current) (ohm) | ≤ Supply Voltage -10V)/(0.02A) |
| Load Resistance (Voltage) (kΩ) | > 10 |
| Maximum Pressure in One Side Port (bar) | H-Port<32, L-Port<12 |
| Operating Temperature Range (°C) | -25 to 85 |
| Output Signal (Current, 2 Wires) (mA) | 4 to 20 |
| Output Signal (V) | 0 to 10 (Voltage, 3 Wires) |
| Power Requirement (Current) (VDC) | 10-32 (Normal 24, Current) |
| Power Requirement (Voltage) (VDC) | 15-32 (Normal 24, Voltage) |
| Process Connection (inch) | 1/8 PT-F |
| Range (bar) | 0 to 16 |
| Seal Material | FPM (Viton)-Standard, NBR, Silicone Rubber, CR (Neoprene), EPDM (Ethylene Propylene) |
| Stability | < ± 0.4% F.S. at 25°C |
| Storage Temperature Range (°C) | -25 to 100 |
| Weatherproof Rating (Enclosure) | IP65, NEMA4/4X or better |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
The specifications given in this publication do not include normal manufacturing tolerances. Therefore, this unit may not exactly match the listed specifications. Also, this product is tested and calibrated under closely controlled conditions, and some minor differences in performance can be expected if those conditions are changed.Feature
- Accuracy 0.5% F.S. - Fluid and Gas applications
- Temperature Compensated
- Built in Amplifier
- Shock and Vibration Resistance
- Zero and Span Adjustments
- False System Shutdown Prevention
