General
These single seated valves are used for modulating control of hot / chilled water or steam in heating, ventilating and air conditioning systems.
The valves can be operated by linear actuators ML6420/ML6425, ML7420/ML7425 or ML6421A/ML7421A.

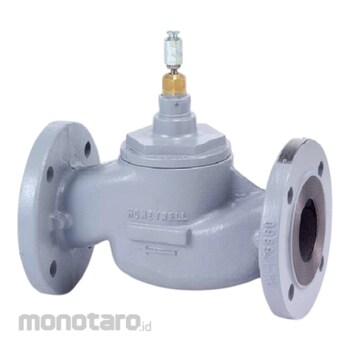

HONEYWELL 2-Way Application Water Flange PN16
#Grup produk P111637533
Spesifikasi
| Action | Stem down to close |
|---|---|
| Application | Water |
| Dimension A (mm) | 290 |
| Dimension B (mm) | 112 |
| Dimension Y1 (mm) | 89 (Valve Closed) |
| End Connection | Flanged per ISO 7005-2 |
| Kvs Value | 63 |
| Leakage Rate | ≤0.03 % of Kvs |
| Material | Cast iron (GG25) |
| Nominal Pressure Rating | PN16 |
| Plug | Pressure balanced plug |
| Rangeability | 50:1 |
| Size (inch) | 2 1/2 |
| Stroke (mm) | 20 |
| Valve Size | DN65 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Cast iron body with flanged end connections- Low seat leakage rate
- High Close-off Pressure Rating (1000kPa)
- Metal to metal seating for long life span
- Self adjusting packing
- Accurate positioning to ensure state of the art temperature control
- Easy mounting of directly coupled with electric actuators
- Approved according to DIN 32730
