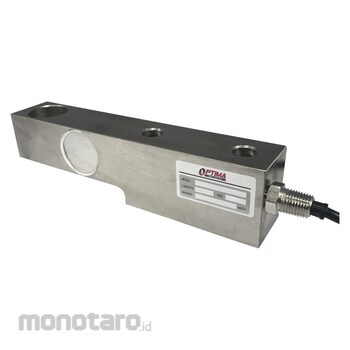

Optima OP-334 5K lb Nickel Plated Alloy Steel Single Ended Beam Load Cell
Interchange
Cardinal SB10000S
Cardinal SB20000S
Cardinal SB2500S
Cardinal SB5000S
Rice Lake RLSB250
Coti Global Sensors CG-SB250
Optima Scale Nickel Plated Alloy Steel Single Ended Beam Load Cell
#Grup produk P111629756
Spesifikasi
| Cable Color Code | Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal |
|---|---|
| Cable Length (ft) | 20 |
| Capacity (lbs) | 5K |
| Construction | Alloy steel |
| Dimensions (inch) | 8.00x1.94x1.44 |
| Finish | Nickel plated |
| Full Scale Output (mV/V) | 2 |
| Hole Threading | 3/4-16UNF |
| IP Rating | 68 |
| Input Resistance (ohm) | 385±20 |
| Insulation Resistance (MΩ) | >5000 |
| Manufacturer | Optima |
| Operating Temperature (°C) | -10 to +40 |
| Output Resistance (ohm) | 350±3 |
| Repeatability | ±0.05 Full scale |
| Safe Overload | 150% capacity |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
5K lb capacity ratingNicel plated alloy steel construction
Welded sealed
Load cell cable length 20 feet
Safe overload up to 150% capacity
IP67 rating
