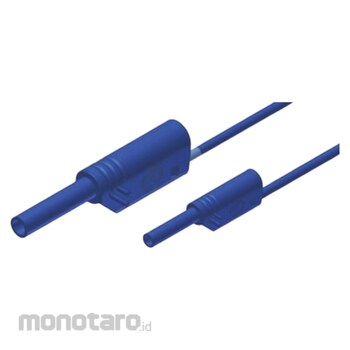

MAL S WS 2-4 100/1 Safety Measuring Leads 2mm and 4mm Plugs-Sockets
These CAT II - CAT III safety test leads from Hirschmann Test and Measurement offer one end with a 2mm safety plug and socket with a 4mm plug and socket at the other connected by a 100cm highly flexible lead with built in indicator of insulation damage, insulation sleeves of the connectors are shatter-proof. Both ends of the safety test leads feature a spring loaded gold plated pin and are compatible with both the 2mm and 4mm Hirschmann safety ranges.
Rated voltage 1000 VAC/DC
Rated current 10A
CAT II (600 VAC/DC, CAT III)
Contact resistance 21 mΩ
HIRSCHMANN Test Leads & Measurement 10A
#Grup produk P111599154
Sebelum PPN:
Rp7.199.900 - Rp7.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connector A - Gender | Male |
|---|---|
| Connector A Orientation | Straight |
| Connector A Shrouded | Yes |
| Connector B - Gender | Male |
| Connector B Orientation | Straight |
| Connector B Shrouded | Yes |
| Contact Material | Beryllium Copper |
| Current Rating (A) | 10 |
| Insulation Material | PVC |
| Lead Length (m) | 1 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | -15 |
| Operating Temperature Range (°C) | -15 → +70 |
| Safety Category Level | CAT II |
| Test Lead Type | 4mm Connector Test Leads |
| Voltage Rating (V) | 1000 AC/DC |
