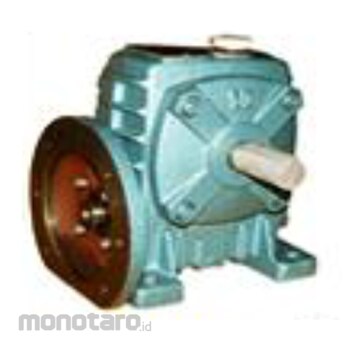

Revco Worm Gear WPDA Type 70
#Grup produk P111589713
Spesifikasi
| Dimension A (mm) | 209 |
|---|---|
| Dimension AB (mm) | 115 |
| Dimension B (mm) | 210 |
| Dimension BB (mm) | 130 |
| Dimension CC (mm) | 70 |
| Dimension E (mm) | 115 |
| Dimension F (mm) | 150 |
| Dimension G (mm) | 20 |
| Dimension H (mm) | 235 |
| Dimension HL (mm) | 70 |
| Dimension LL (mm) | 140 |
| Dimension M (mm) | 150 |
| Dimension N (mm) | 190 |
| Dimension Z (mm) | 15 |
| Flange LA (mm) | 130 |
| Flange LB (mm) | 110 |
| Flange LC (mm) | 160 |
| Flange LE (mm) | 5 |
| Flange LG (mm) | 12 |
| Flange LZ (mm) | M10 |
| Input Hole Q (mm) | 35 |
| Input Hole TxV (mm) | 5x16.3 |
| Input Hole U (mm) | 14 |
| Output Shaft LS (mm) | 60 |
| Output Shaft S (mm) | 28 |
| Output Shaft WxY (mm) | 7x4 |
| Size | 70 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
