General Tools & Instruments Portable Video Borescope
#Grup produk P111586798
Spesifikasi
Analog Video Out Formats Console | NTSC and PAL |
---|---|
Capacity of Included 4GB SD Card Console | Three hours of VGA resolution video consuming an average of 26 Mbytes/minute |
Diameter P16181HP Probe (inch) | 0.22 |
Diameter P16181HP Probe (mm) | 5.5 |
Display Console (inch) | 7 diagonal TFT color LCD |
Display Console (mm) | 178 diagonal TFT color LCD |
Display Resolution Console (pixel) | 800x480 |
Frame Rotation Option Console (°) | 90, 180, 270 |
Impact Resistance Console | Drop from height of 1m (39 in.) |
Ingress Protection Console | To water, oil & dust per IP55 standard |
Interfaces Console | USB 2.0 and A/V jacks |
Length P16181HP Probe (inch) | 39 |
Length P16181HP Probe (m) | 1 |
Operating Temperature Console (°C) | -10 to 60 |
Operating Temperature Console (°F) | 14 TO 140 |
Power Source Console | Rechargeable Lithium-polymer battery or #AC3 Adaptor/Charger (included) |
Recording Nedium Console | Standard-size SD card of up to 32GB capacity (4GB card included) |
Recording Resolution Console (pixel) | 640x480 (VGA) |
Type P16181HP Probe | Flexible-Obedient |
Video Zoom Option Console | 1.5X 2X, 5X |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Description

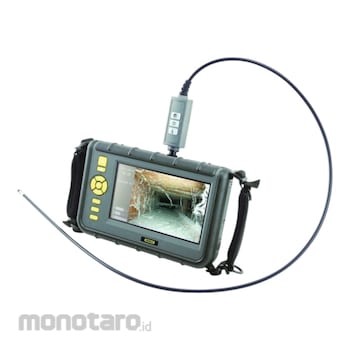

The #DCS2000 Rugged Recording Video Inspection Camera/Borescope with 7 Inch Screen and High-Performance Probe is General’s best-of-breed offering. It's ideal for professional close-up examinations of hard-to-see and hard-to-reach areas.
Includes
Console
#P16181HP high-performance probe
110° mirrored probe viewing tip
4GB SD memory card
USB cable
#AC3 AC Adaptor/Charger
Airtight hard plastic carrying case
Hand strap
Includes
Console
#P16181HP high-performance probe
110° mirrored probe viewing tip
4GB SD memory card
USB cable
#AC3 AC Adaptor/Charger
Airtight hard plastic carrying case
Hand strap
Feature
-7 in. (178mm) diagonal LCD with HD (800 x 480 pixel) resolution-1m (39 in.) long x 5.5mm (0.22 in.) diameter flexible-obedient P16181HP high-perfornance probe; probe is available in 2m and 3m lengths
-Camera lighting by six LEDs—four facing forward and two at an angle—provides glare-free viewing in any environment
-Light boost, anti-reflection and 90 frame rotation buttons on probe handle maximize visibility of any inspection target
-Probe and stainless steel camera head are IP67 water, oil and dust-proof. Console is IP57 water, oil and dust-proof, and drop-proof from height of 1m (39 in.).
-Records VGA resolution video clips (with voice annotation) and still images using familiar menu-driven user interface. Saved video and photo files incorporate real-time brightness and zoom adjustments made prior to recording or "on the fly" to optimize ta
-Easy-to-navigate album-style (3 x 3 grid) display of all stored media files
-Different areas of interest on saved photos can be selected for extreme close-up viewing
-Field of view can be enlarged up to 5X, mirrored horizontally, or rotated 90°, 180° or 270°. Features can be applied alone or together to make targets easier to inspect and serial numbers easier to read.
-4GB SD memory card
-Analog video out/headphone jack
-USB cable for uploading media on the SD card to a PC without ejecting the card
-110° mirrored probe viewing tip
-Console is compatible with longer and articulating VGA resolution probes from General
-Adjustable Auto Power Off triggering time
-Choice of 27 menu languages
-Custom airtight hard plastic carrying case
-Hand strap and tripod mount
