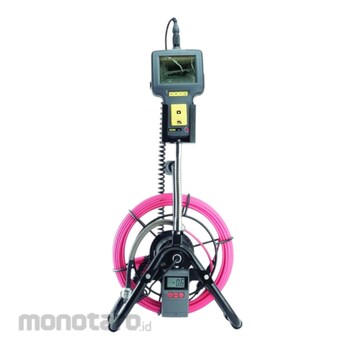

The #DPS16-R30 Pipe & Duct Recording Video Inspection Camera/Borescope with 100Ft. Probe is ideal for examining the interior of 2, 4 and 6 inch I.D. water and sewer pipes with the help of included probe centering accessories. The IP68-rated probe is 100ft. (30m) long, with a field replaceable 28mm (1.1 in.) diameter camera head.
Includes
#H16 Recording Console
100 Ft. Pipe & Duct Inspection Probe & Reel Set (with probe length counter)
A probe centering ring with an inner diameter of 1.1 in. (28mm) and an outer diameter (O.D.) of 2 in. (50mm)
A small probe centering brush with an I.D. of 1.1 in. (28mm) and an O.D. of 4 in. (100mm)
4GB SD memory card
RCA cable for viewing video and images on an NTSC monitor
#AC2 AC Adaptor/Charger
Custom hard carrying case
General Tools & Instruments Pipe and Duct Video Borescope Inspection System
#Grup produk P111586770
Spesifikasi
| Analog Video Out Formats H16 Console | NTSC and PAL |
|---|---|
| Camera Head Diameter Probe (inch) | 1.1 |
| Camera Head Diameter Probe (mm) | 28 |
| Camera and Recording Resolution H16 Console (pixel) | 640x480 (VGA) |
| Depth of Field Probe (inch) | 0.4 to infinity |
| Depth of Field Probe (mm) | 10 to infinity |
| Display H16 Console (inch) | 3.5 diagonal TFT color LCD |
| Display H16 Console (mm) | 89 diagonal TFT color LCD |
| Display Resolution H16 Console | 320 by 240 pixels (QVGA) |
| Field of View Probe (°) | 150.8 (diagonal) |
| Length Probe (ft) | 100 |
| Length Probe (m) | 30 |
| Light Source Probe | Eight white LEDs |
| Material Probe | Fiberglass |
| Minimum Bending Radius Probe (inch) | 6 |
| Minimum Bending Radius Probe (mm) | 150 |
| Operating Temperature H16 Console (°C) | 0 to 60 |
| Operating Temperature H16 Console (°F) | 32 to 140 |
| Power Source H16 Console | Rechargeable 3.7V Li-ion battery or #AC2 Adaptor/Charger (included) |
| Recording Medium H16 Console | Standard-size SD card (4GB card included) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
-Combines an #H16 recording console with a 100 Ft. Pipe & Duct Inspection Probe & Reel Set-Eight super-bright white LEDs illuminating the probe camera produce 640 x 480 pixel (VGA) resolution video clips and photos
-The probe is watertight to the IP67 standard and is flexible enough to make two 90° bends in a 1.6 in. (40mm) I.D. pipe
-The stainless steel camera head is immune to bathroom toilet cleaner, unleaded gasoline, brake/transmission fluid and machine oil
-The steel probe reel is sturdy and dust-tight to the IP65 standard. The reel works vertically or horizontally, and it includes an IP55-rated probe length counter, as well as a bracket for the H16 console
