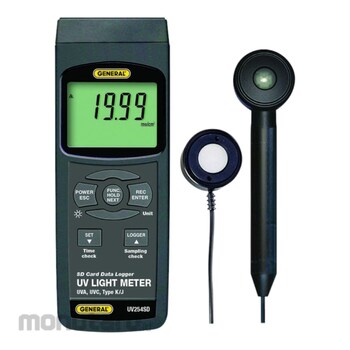

The #UV254SD light level meter can measure and log UVA and UVC light intensity values. Applications include welding, UV food sterilization, photochemical matching, erasing memory chips, exposing photoresists, and curing of inks, adhesives and coatings.
Includes
UVA and UVC light probes
2GB SD memory card
Custom hard plastic carrying case
General Tools & Instruments Data Logging UVA-UVC Light Meter
#Grup produk P111586716
Spesifikasi
| Auto Power Off (minute) | After 10 of inactivity |
|---|---|
| Data Logging Sampling Time | Adjustable from 1sec to 1hour |
| Dimensions (inch) | 6.97x2.68x1.77 |
| Dimensions (mm) | 177x68x45 |
| J Port Measurement Range (°C) | -100 to 1100 with Type \"J\" thermocouple |
| J Port Measurement Range (°F) | -148 to 2012 with Type \"J\" thermocouple |
| K Port Measurement Range (°C) | -100 to 1300 with Type \"K\" type thermocouple |
| K Port Measurement Range (°F) | -148 to 2372 with Type \"K\" type thermocouple |
| K/J Port Measurement Accuracy (% of Reading) | ±0.4 |
| K/J Port Measurement Resolution (°) | 0.1 |
| LCD Size (inch) | 2.05x1.5 |
| LCD Size (mm) | 52x38 |
| Measurement Accuracy | ±(4% of full-scale reading + 2 digits) |
| Measurement Ranges (mW/cm²) | 0 to 2/20 at 240 to 390nm |
| Operating Temperature (°C) | 0 to 50 @ <85% RH |
| Operating Temperature (°F) | 32 to 122 @ <85% RH |
| Power Source | Six \"AA\" batteries (not included) or optional #AC1 9V AC adaptor |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
-Auto ranging-Min/Max memory + data hold
-"K/J" port with automatic temperature compensation (ATC) for measuring surface temperature using an optional Type "K" or "J" thermocouple probe
-Large backlit LCD
-Auto power off (can be disabled for data logging)
-Tripod mount
