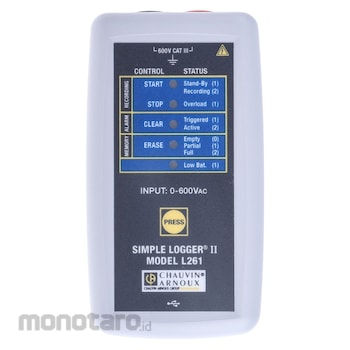

Simple Logger II TRMS 600 V AC/DC Model L261
TRMS Voltage data logger suitable for the following applications:
Surge and Sag recording
Long-term supply monitoring
Industrial, commercial and residential monitoring
Monitor voltage harmonics
Find intermittent voltage problems
Machine monitoring
TRMS voltage recording up to 600 V AC/DC
64 samples per cycle
Programmable storage rates from 8 per second to 1 per day
3 user-selectable storage modes
Stores up to 240,000 measurements in nonvolatile memory
Powered by standard alkaline batteries
Lightweight, compact, fits anywhere
5 LED indicators display logger status quickly and clearly
Includes FREE DataView software for data storage, real-time waveform display, analysis and report generation
Isolated USB communication
USB cable included
300 V CAT IV; 600 V CAT III
Supplied with: Model L261 includes type A to 5-pin mini-B USB 2metres, set of two colour-coded 1.5 m (5 ft) voltage leads, colour-coded crocodile clips (red/black), DataView CD, two 1.5 V AA-cell alkaline batteries and user manual.
Chauvin Arnoux Voltage Data Logger
#Grup produk P111586497
Spesifikasi
| Battery Life (day) | Up to 45 |
|---|---|
| Battery Type | AA x 2 |
| Best Voltage Measurement Accuracy | ±0.5 % + 0.5V |
| Data Logger Type | Voltage |
| Dimensions (mm) | 125x70x32 |
| Display Type | LCD |
| IP Rating | IP40 |
| Includes | AA Battery x 2, DataView CD, USB Cable, User Manual |
| Interface Type | USB 2.0 |
| Manufacture Part Number | P01157040 |
| Maximum Operating Temperature (°C) | +50 |
| Maximum Voltage Measurement (V) | 600 ac/dc |
| Measurement Parameters | Voltage |
| Minimum Operating Temperature (°C) | -10 |
| Number of Input Channels | 1 |
| Number of Readings Per Channel | 240000 |
| Power Source | Battery |
| Sensor Type | Voltage |
