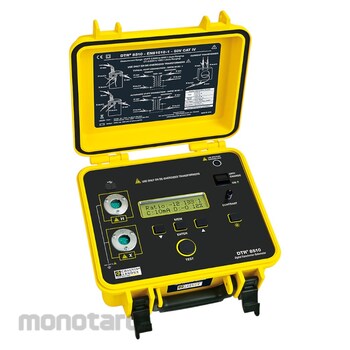

DTR 8510 Digital Transformer Ratiometer
The DTR 8510 Dogital Transformer Ratiometer is fully automatic and uses the IEEE C57.12-90-2006 test method. The DTR 8510 is a portable digital transformer ratiometer designed for on-site testing of power, potential and current transformers.When connected to a non-energized transformer, the DTR 8510 accurately measures the primary-to-secondary turns ratio, while simultaneouslydisplaying the polarity and excitation current.
Supplied with: DataView analysis software
Chauvin Arnoux Ratiometer
#Grup produk P111586196
Spesifikasi
| Battery Life (hour) | 10 |
|---|---|
| Excitation Current Display (A) | 0 -> 1 |
| Excitation Signal CT | 0 -> 1 A, 0.1 -> 4.5Vrms |
| Excitation Voltage VT/PT (Vrms) | 32 |
| Power Supply | Battery |
| Ratio Range (CT) | 0.8000 -> 1000.0 |
| Ratio Range (VT/PT) | 0.8000 -> 8000.0 :1 |
| Test Frequency (Hz) | 70Hz |
| Test Results Storage | 10 000 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Automatic calibration and balancingNo adjustments required
Low-voltage test
Measures power transformers, VT/PTs and current transformer turns ratios
Displays turns ratio, excitation current, winding polarity and % deviation from the nameplate values
Large dual display with adjustable contrast ensures clearer visibility in any lighting environment, day or night
Up to 10,000 tests can be stored
USB port to simplify instrument configuration and downloading of test results
NiMH battery life of up to 10 hours
