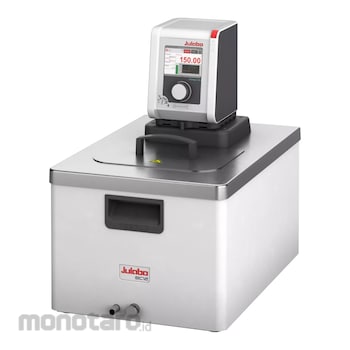

DYNEO DD-BC12 Heating circulator
for working temperatures from +20 °C to +200 °C
DYNEO DD heating circulators for internal and external applications are equipped with closed bath tanks. The tanks are well insulated and include a coil for counter-cooling. An integrated drain tap makes emptying the tank safe and clean. The multilingual 3.5-inch color display and unique rotary knob provide for straightforward and intuitive operation.
1 For applications near or below ambient temperature: use a cooling coil or JULABO immersion cooler.
Julabo Heating Circulator DYNEO
#Grup produk P111580697
Sebelum PPN:
Rp209.999.900 - Rp249.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Absolute Temperature Calibration | 3 Point Calibration |
|---|---|
| Ambient Temperature (°C) | +5 to +40 |
| Barbed Fittings Inner Diameter (mm) | 8/12 |
| Bath Cover | Integrated |
| Bath Tank | Stainless steel |
| Classification | Classification III (FL) (according to DIN12876-1) |
| Electronic Timer (h:min) | 00:00 ... 99:59 |
| External Pt100 Sensor Connection | integrated |
| Heating Capacity (kW) | 2 |
| Included in delivery | 2 Barbed fittings for tubing 8 and 12 mm ID. (Pump connections M16x1 male) |
| Integrated Programmer | 8x60 steps |
| Interface | Alarm output optional / REG/EPROG optional / RS232 optional / Standby-Input optional / USB |
| Maximum Viscosity (cSt) | 50 |
| Power Consumption (A) | 10 |
| Pump Capacity Flow Pressure (L/minute) | 8 to 27 |
| Pump Capacity Pressure (bar) | 0.1 to 0.7 |
| Pump Connection | M16x1 male |
| Pump Function | Pressure Pump |
| Pump Type | Immersion Pump |
| Setting the Resolution of the Temperature Display (°C) | 0.01 |
| Temperature Control | PID3 |
| Temperature Display | 3.5inch TFT Display |
| Temperature Display Resolution (°C) | 0.01 |
| Temperature Setting | Shaft Encoder |
| Temperature Stability (°C) | ±0.01 |
| User Interface Language | Chinese/English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Spanish |
| Working Temperature Range (°C) | +20 ... +200 |
