Kramer Computer Graphics Video Cable
#Grup produk P111558591
Spesifikasi
| Attenuation (dB/100ft) | -0.5 @1MHz, -1.3 @5MHz, -1.9 @10MHz, -4.0 @50MHz, -5.7 @100MHz, -8.0 @180MHz, -14.0 @400MHz |
|---|---|
| CSA | C(UL) CL2 |
| Capacitance (pF/m) | 57 |
| Center Conductor Diameter (mm) | 0.48 |
| Conductor Size (AWG) | 26 7/34 tinned copper |
| DC Resistance (Ω/km) | 148 |
| Dielectric | Foam polyethylene with red, green, blue color coding |
| Dielectric Diameter (mm) | 1.95 |
| Electrical Temperature (°C) | -20 to 75 |
| Impedance (ohm) | 75 |
| Individual Coax Diameter (mm) | 2.6 |
| Inner Jacket | PVC |
| Jacket Color | Black |
| Shield | (A) 90% spiral 38AWG tinned copper (B) aluminum-foil/Mylar 25% overlap rate |
| Standard Compliance UL | CL2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

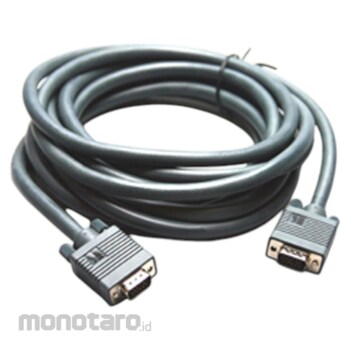

Kramer’s C-GM/GF computer graphics video cable is a high-performance cable with molded 15-pin HD connectors on both ends. It is used for connecting computer graphics video signals between computers or video scalers and plasma, LCD or other popular display technologies.
