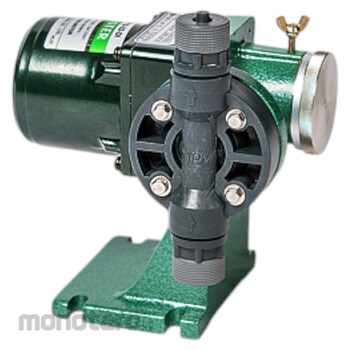

DONG IL Compact Diaphragm Dosing Pump DS Series
#Grup produk P111549557
Spesifikasi
| Ball Guide Material | FPM |
|---|---|
| Ball Valve Material | Ceramics |
| Connecting Type | Hose Type (Standard), Flange (Optional) |
| Diaphragm Head Material | PVC |
| Diaphragm Material | PTFE/EPDM |
| Discharge Quantity (ml/minute) | 206 (at 50Hz) |
| Gasket Material | PTFE |
| Hose Material | PVC |
| Joint Hose | Φ6xΦ9 |
| Joint Material | PVC |
| Maximum Discharge Pressure (kg/cm²) | 10(15) |
| Motor Output Power (W) | 15(25) |
| No. of Stroke (SPM) | 96 (at 50Hz) |
| Room Temperature for Pump (°C) | 0-40 |
| Union Nut Material | PVC |
| Usage Temperature (°C) | 0-50 |
| Using Viscocity | Below 50cp |
| Valve Seat Material | PVC |
| Voltage (V) | 220 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website.
Feature
Features & Cautions-Dong-il MT has created a time for silent and no defects pumps which unitary structure from geared motor to adjustment lever of liquid volume.
-Maximized life with uniformed structure.
-It is easy to use and maintain by compact design.
-Above specifications are that should be changeable due to improvement etc without any notice.
Use
Application-Swimming pool
-Septic tank
-Sterilizing water
-Simple prepared water
-Water treatment
-Feeding antiseptle
-City waste water
-Feeding various medical fluid
