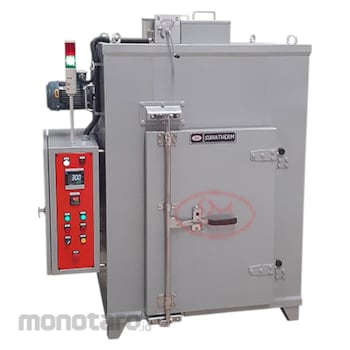

Suhatherm Cabinet Oven
#Grup produk P111540538
Spesifikasi
| Heater Power (kW) | 7.5 |
|---|---|
| Indication Accuracy (%) | ±0.3 ± 1 digit |
| Inner Dimensions (WxDxH) (mm) | 760x540x890 |
| Interior Material | SUS 304 Stainless Steel |
| Maximum Load Capacity (kg) | ±270 |
| Operating Temperature (°C) | 40 to 204, Rise time ± 30 Minutes *Uniformity : ± 4 at 204 (No Load); 40 to 150, Rise time ± 18 Minutes *Uniformity : ± 3 at 150 (No Load) (Temp. Uniformity Test Based on 9 Point Test in Empty Load) |
| Outer Dimensions (WxDxH) (mm) | 1580x795x1730 |
| Power Source | 3Ǿ, 380, 50Hz, 4W +Earth, 8.6kW |
| Shelf/Tray Capacity (kg) | ±90 per shelf |
| Shelf/Tray Provided Quantity | 2 Nos, Stainless Steel SUS 304 Rod Construction Material |
| Shelf/Tray Size (WxD) (mm) | 750x500 |
| Temperature Control Stability (°C) | ±0.5 |
| Temperature Range (°C) | 40-260 |
| Volume (L) | ±365 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
Description
• Mild Steel exterior finished by Jotun protective paint
• Industrial Rock Wool Insulation
• Air tight double leaf manual swing door
• Manual adjustable air inlet and exhaust dumper
• Force convection with:
o Hot air re-circulating system
o Horizontal air flow, side to side blowing direction
o Circulation Blower motor : 3 Ø 380 V, 50 Hz, 1,1Kw
o Heater Power : 7.5 Kw
• Oven wall mounting type electrical control panel
• Microprocessor based digital indicating temp controller with features :
o Digital display screen for set point (SV) and actual (PV) temperature
o PID Control, Fuzzy PID Control, Self tuning & Auto Tuning Control.
o Indication accuracy : ±0.3% ± 1 digit
• Over temperature protection system controlled by :
- Hi-Limit alarm of chamber temperature control
- Heater Overheat Protector
- Electrical Interlock system between circulation blower & heater power switching control
• Industrial process Temperature Sensor Ex. SUHATHERM
• Digital Timing system for soaking/holding process
• Heater power switching control:
Full proportional heating control by SCR power regulator
• Industrial Rock Wool Insulation
• Air tight double leaf manual swing door
• Manual adjustable air inlet and exhaust dumper
• Force convection with:
o Hot air re-circulating system
o Horizontal air flow, side to side blowing direction
o Circulation Blower motor : 3 Ø 380 V, 50 Hz, 1,1Kw
o Heater Power : 7.5 Kw
• Oven wall mounting type electrical control panel
• Microprocessor based digital indicating temp controller with features :
o Digital display screen for set point (SV) and actual (PV) temperature
o PID Control, Fuzzy PID Control, Self tuning & Auto Tuning Control.
o Indication accuracy : ±0.3% ± 1 digit
• Over temperature protection system controlled by :
- Hi-Limit alarm of chamber temperature control
- Heater Overheat Protector
- Electrical Interlock system between circulation blower & heater power switching control
• Industrial process Temperature Sensor Ex. SUHATHERM
• Digital Timing system for soaking/holding process
• Heater power switching control:
Full proportional heating control by SCR power regulator
Peringatan
Disarankan untuk kontak terlebih dahulu untuk stok dan diskusi aksesoris produkFeature
o PWM system for very good linear controlo High accuracy and fast response
o Able to keep steady temperature very well
