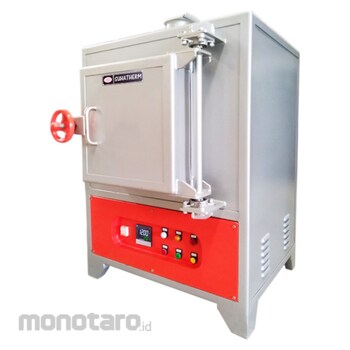

Suhatherm Bench Furnace
#Grup produk P111540495
Sebelum PPN:
Rp86.999.900 - Rp99.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Door Insulation Material | Hi-grade insulating fire brick with Ceramic Board & Calcium Silica Board |
|---|---|
| Exhaust Outlet | Manually adjustable exhaust dumper |
| Furnace Door | Single leaf swing doors secured by manual steer |
| Heating Element Material | Fe-Cr-Al heating alloy |
| Heating Element Model | Spiral wire element in grooves |
| Heating Element Placement | Placed on the left, right, & rear side of furnace wall |
| Housing Material | Steel sheet t.5 mm |
| Inner Insulation Material | Hi-grade insulating fire brick |
| Maximum Operating Temperature (°C) | 1200 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
Description
- Ideal for laboratory use
- Maximum operating temperature up to 1200°C
- Hi-grade insulating fire bricks interior backed up by ceramic fibre board & blanket
- Manual adjustable heat resistant alloy outlet
- Single leaf air tight swing door secured by manual steer
- Free radiating by electric heaters at left, right & rear side of furnace wall
- Furnace built-in type electrical control panel
- Microprocessor based digital indicating temperature controller
- Overheat protection system
- Digital timing system for soaking / holding process
- Industrial process thermocouple sensor
- On / off heating control by magnetic contactor (Optional: Full proportional heating control by SCR power regulator)
• Thermal Rate (At empty load) [approx.]
- 30°C – 500°C, Thermal Rate: 15°C/ min
- 500°C – 800°C, Thermal Rate: 5°C/ min
- 800°C – 1200°C, Thermal Rate: 2°C/ min
• Thermocontroller:
- PID, Fuzzy PID, self-tuning, & auto-tuning control
- Indication accuracy: ±0.3% ± 1 digit
- Up to 64 heating steps and programmable to:
- 1 Nos heating patterns with 64 heating steps / pattern
- 2 Nos heating patterns with 32 heating steps / pattern
- 4 Nos heating patterns with 16 heating steps / pattern
- 8 Nos heating patterns with 8 heating steps / pattern
- Maximum operating temperature up to 1200°C
- Hi-grade insulating fire bricks interior backed up by ceramic fibre board & blanket
- Manual adjustable heat resistant alloy outlet
- Single leaf air tight swing door secured by manual steer
- Free radiating by electric heaters at left, right & rear side of furnace wall
- Furnace built-in type electrical control panel
- Microprocessor based digital indicating temperature controller
- Overheat protection system
- Digital timing system for soaking / holding process
- Industrial process thermocouple sensor
- On / off heating control by magnetic contactor (Optional: Full proportional heating control by SCR power regulator)
• Thermal Rate (At empty load) [approx.]
- 30°C – 500°C, Thermal Rate: 15°C/ min
- 500°C – 800°C, Thermal Rate: 5°C/ min
- 800°C – 1200°C, Thermal Rate: 2°C/ min
• Thermocontroller:
- PID, Fuzzy PID, self-tuning, & auto-tuning control
- Indication accuracy: ±0.3% ± 1 digit
- Up to 64 heating steps and programmable to:
- 1 Nos heating patterns with 64 heating steps / pattern
- 2 Nos heating patterns with 32 heating steps / pattern
- 4 Nos heating patterns with 16 heating steps / pattern
- 8 Nos heating patterns with 8 heating steps / pattern
Peringatan
Disarankan untuk kontak terlebih dahulu untuk stok dan diskusi aksesoris produk- Foto hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya
- Warna produk mengacu pada nama dan spesifikasi produk yang tertera pada website
- Produk yang diterima akan sesuai dengan informasi yang tertera pada website
Feature
• Industrial process thermocouple type K with ceramic protection tube & aluminum protection head• Full proportional heating control by SCR power regulator
- PWM system for very good linear control
- High accuracy and fast response
- Consistent temperature
- Extends heater life
