IDEC Illuminated Selector Switch
#Grup produk P111534166
Spesifikasi
| Mounting Hole Diameter (mm) | phi 22.3(0～+0.4) |
|---|---|
| Notch Angle (°) | 90 |
| Number of Notches | 2 |
| Contact Configuration | 1a1b |
| Protective Structure | IP65 |
| Terminal Shape | M3.5 screw terminals |
| Ambient Temperature (°C) | -25 to 60 (but do not freeze), Illumination unit -25 to 50 |
| Contact Material | Silver contacts |
| Illumination Color | Blue |
| Impact Resistance Durability (m/s²) | 1000 |
| Insulation Resistance (MΩ) | Over 100 (DC500V Mega) |
| Lamp Voltage (V) | AC/DC24 |
| Rated Current (A) | 10 |
| Rated Insulation Voltage (V) | 600 |
| Shock Resistance Malfunction (m/s²) | 100 |
| Storage Temperature (°C) | -40 to 80 (but do not freeze) |
| Vibration Resistance Durability | 30Hz, single amplitude 1.5mm |
| Vibration Resistance Malfunction | 5 to 55 Hz, single amplitude 0.5 mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning

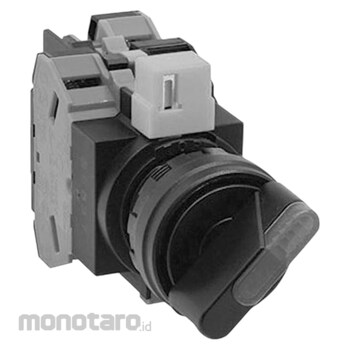

*Sample image (please check the specifications of each product number for details)Ulasan Produk
