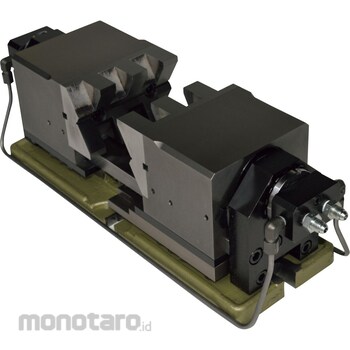

KYORITSU Hydraulic Double Tightening Center Vise KW Type
#Grup produk P111530142
Kondisi Barang:
Authorized Partner
Spesifikasi
| Height Sliding Surface (mm) | 85 |
|---|---|
| Jaw Opening (mm) | 154 (without Clasp) |
| Mass (kg) | 50 |
| Material | Body: FC300, Base: S50C (quenched) |
| Maximum Clamping Force (MPa) | 6.5 |
| Maximum Clamping Force (kN) | 20 |
| Mouth Depth (mm) | 90 |
| Overall Height (mm) | 175 |
| Overall Length (mm) | 460 |
| Overall Width (mm) | 160 |
| Stroke (mm) | Movable: 48 x 2 |
| TRUSCO Number | 216-5723 |
| Tip Width (mm) | 144 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The jaw can be easily opened and closed by flood control. The left and right jaws move in precise synchronization with gears and racks to maintain center position. Grasp it firmly with flood control. By using the optional uneven V base, the work piece can be inserted from Φ10 to Φ90 without changing the base.
Feature
The jaws can be easily opened and closed using hydraulic pressure. The left and right jaws move in precise synchrony with gears and racks to maintain their central position.
Grasp firmly using hydraulic pressure.
By using the optional concave/convex V clasp, you can hold workpieces from Φ10 to Φ90 without changing the clasp.
