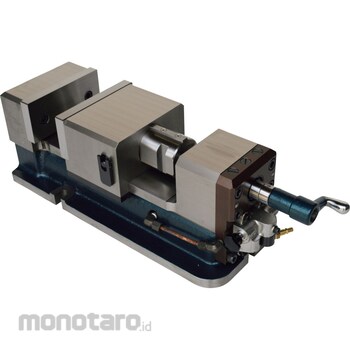

KYORITSU Air Hydro Vise KAH Type
#Grup produk P111529942
Kondisi Barang:
Authorized Partner
Spesifikasi
| Height Sliding Surface (mm) | 104 |
|---|---|
| Hose connection | Coupler 22SH (1/4) |
| Jaw Opening (mm) | 157 |
| Mass (kg) | 63 |
| Material | Body: FC250, Base: S50C (quenched) |
| Maximum Clamping Force (MPa) | 0.7 |
| Maximum Clamping Force (kN) | 35 |
| Mouth Depth (mm) | 86 |
| Overall Height (mm) | 190 |
| Overall Length (mm) | 536 |
| Overall Width (mm) | 200 |
| Stroke (mm) | Movable: 10 |
| TRUSCO Number | 216-5726 |
| Tip Width (mm) | 170 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Powerful, high-precision, air-hydro tightening force enables more powerful work chucking by hydraulic operation with a built-in booster. It is powerful and highly accurate with a tightening force of 3500 kg due to hydraulic operation by the built-in booster. The 70mm slide can be moved quickly by operating the knob / clamp lever on the side.
