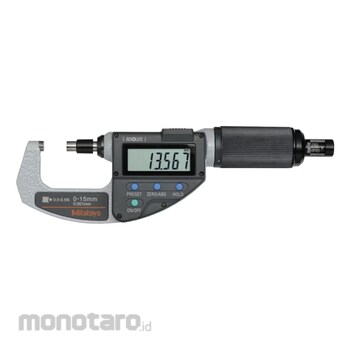

Mitutoyo Soft Touch Micro
#Grup produk P111525061
Sebelum PPN:
Rp15.999.900 - Rp16.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Approximate Battery Life (year) | 5 (at regular use) |
|---|---|
| Flatness (µm) | 0.3 |
| Function | Variable measuring force function, origin set function, zero set function, hold function, function lock function, auto power ON / OFF function, measurement data output function, error alarm |
| Included Accessories | 1 Flathead screwdriver (No.210183) |
| Maximum Permissible Error (µm) | ±2 |
| Measuring Force (N) | 2 to 10 (variable) |
| Measuring Position | Horizontal and horizontal position only (spindle tilt within ±3° recommended) |
| Minimum Reading (mm) | 0.001 |
| Operating Temperature Range (°C) | 5 to 40 |
| Output | Measurement Data Output |
| Parallelism (µm) | 2 |
| Position Detection Method | Capacitive absolute encoder |
| Power Supply | One SR44 (No.938882) button-type silver oxide battery included as standard (The button-type silver oxide battery included as standard is for monitoring) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Series | 227 |
| Storage Temperature Range (°C) | -10 to 60 |
| Type | Variable Measuring Force Type Digimatic Micrometer |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Products with proofreading documents cannot be canceled after ordering - Orders can only be placed online.Feature
- Compact shape with constant and low measuring force mechanism built into the thimble.- The measuring force can be changed and can be applied to various types of workpieces.
- ABS scale
- A function lock function has been added to prevent incorrect operation.
- Can be connected with MeasurLink
- The spindle is straight forward type
- Measuring surface has a cemented carbide tip
Use
Constant/low measuring force for electric wire, paper, plastic, rubber, etc.Ideal for measuring
