Insulation resistance measurement 5 ranges Prevent the danger of performing insulation tests on live circuits with the function of detecting voltages exceeding 30V during insulation tests Measure motor inverters with a low-pass filter that includes a wide variety of multimeter measurement items Safely test with remote probes with insulation tests Allows PI/DAR testing
With insulation resistance meter function

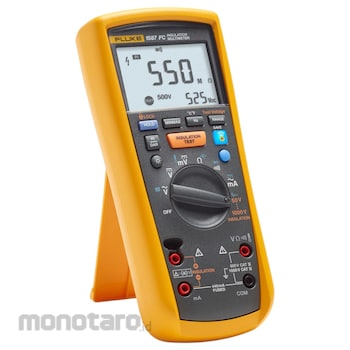

FLUKE Insulated Multimeter (Multitester)
#Grup produk P111521782
Spesifikasi
| AC Current (mA) | 400, 60 |
|---|---|
| Accuracy | Resistance = ±(0.9%+2 counts), Temperature measurement basics = ±(1%+10 counts) |
| Basic Accuracy | DC Voltage = ±(0.09%+2 counts), DC Current = ±(0.2%+2 counts), AC Current = ±(1.5%+2 counts), Capacitance = ±(1.2%+2 counts), Frequency =± (0.1%+1 count) |
| Capacitance | 1000nF, 10.00μF, 100.0μF, 9999μF |
| Chip type | Tip = 2 planes, 14 lengths |
| DC current (mA) | 400, 60 |
| Dimensions (mm) | 203x100x50 |
| Frequency | 99.99Hz, 999.9Hz, 9.999kHz, 99.99kHz |
| Included Accessories | TL224 test lead, TP74 test probe, AC285 alligator clip, TP165x probe with insulation test switch, 80BK-A, 4 AA batteries |
| Operating Temperature Range (°C) | -20 to 55 |
| Resistance | 600.0Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 50.0MΩ |
| Storage Temperature Range (°C) | -40 to 60 |
| Temperature Measurement Range (°C) | -40.0 to 537.0 |
| Tip Material | Stainless steel |
| Trusco Part No. | 836-9099 |
| Voltage (V) | 1000 (AC); 1000 (DC) |
