-1 unit of master module can be Connect up to 32 units of Slave Module.
-Multiple Inputs ;Thermocouple (Type E, J, K, N, S and T) /R.T.D. (Pt100 & JPT100) is selectable by front key of master module.
-The master can read the address and data from slave automaticly
-Heating / Cooling PID control Autotuning
-On / Off Position Control
-2 Relay Output & 1 alarm relay
-Interface with computer by RS-485, Modbus Protocol.

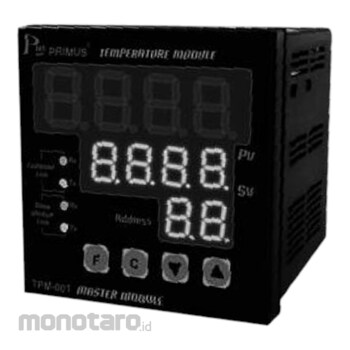

Primus Temperature Module
#Grup produk P111518627
Spesifikasi
| Accuracy | 0.25% of FS at 25 C (Room Temperature) |
|---|---|
| Communication Slave Module | RS485 19200 bps |
| Control Function On/Off | Hysteresis 0-100% of Range |
| Control Function PID (s) | Cycle Time 1-120 |
| Indicator Address Salve Module | 3 digits 7 Segment Green LED |
| Indicator Master Module Address | 3 digits 7 segment red led |
| Indicator Process Value Master Module | 4 digits 7 segment green led |
| Indicator Setting Value Master Module | 4 digits 7 segment Red LED |
| Input Current (mA) | 4-20 |
| Input Thermocouple | Type K, J, R, T, N, S, E, 0-100 mV, PT100, PTC, NTC |
| Input Voltage (V) | 0-10 DC |
| Memory | EEPROM |
| Output Current (mA) | 4-20 |
| Output Relay | 30 VDC / 250 VAC 5 A 1 SPST |
| Output SSR | 10 VDC |
| Output voltage (V) | 0-10 DC |
| Sampling Time (s) | 0.5 |
| Sensor Adjust | 0-100% of Range |
| Supply Voltage Master Module (V) | 220 AC ±10% |
| Supply Voltage Slave Module (V) | 220 AC ±10% |
