-Clearly vision with 4 digits of red LED 7 segment display.
-Provied bargraph to indicated the percentage of Output
-Selectable several inputs. (Thermocouple Type E/ J/ K/ N/ R/ S/ T , PT100, 100 mV, 4-20 mA and 0-10Vdc) input direct on instrument terminal
-Provide 3 of alarms relay output (Maximum)
-Lock of value setting is supportable.
-Select input type by keypad.
-Interface with computer by RS-485, Modbus Protocol.

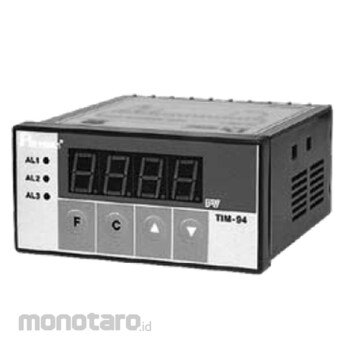

Primus Temperature Indicator
#Grup produk P111518609
Spesifikasi
| Accuracy | 0.25% +1 digit FS |
|---|---|
| Alarm | Up to 3 Alarm Relay |
| Alarm Current (A) | 3 |
| Alarm Hysteresis | 0-10% Range |
| Alarm Voltage (V) | 250 AC |
| Analog Transfer Current (mA) | 4-20 |
| Analog Transfer Voltage (V) | 0-10 |
| Communication | RS-485 |
| Display | 4 digits 7 segment red LED |
| Indication | Red LED |
| Input Current (mA) | 4-20 |
| Input RTD | PT100 |
| Input Thermocouple | K, J, R, T, N, S, E |
| Input Voltage (V) | 0-10 |
| Memory | EEPROM |
| Operating Temperature (°C) | 0-55 |
| Response Time (s) | 0.25 |
| Sensor Power Supply (V) | 24DC |
| Supply Voltage (V) | 90-250AC (Standard) |
| Time On/Off (s) | 0-60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
