-Thermocouple Type J/K/R/S/T/N/E, PT100 Input
-Process Input ; 0-10mV, 0-1 V, 0-10V, 0-100V,0-250V,0-500V, 0-20mA, 4-20mA, 0-100mA, 0-1A, 0-3A and 0-5A Selectable by Ordering code
-Programmable Input range by PC (Software Support WinXP)
-Interface with PC by RS485, Modbus Protocol
-4-20mA / 0-10 Vdc Output Selectable by Ordering Code
-Easy to install will Din rail Mounting
-Compact size
-Data Logging and Report Optional in software

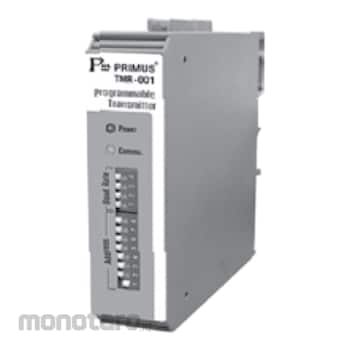

Primus Programmable Signal Transmitter with RS-485
#Grup produk P111518502
Spesifikasi
| Accuracy | ±0.2% of Full scale at 25 ℃ |
|---|---|
| Analog Output Accuracy | ±0.2% of Full Scale |
| Analog Output Resolution | 4095 steps |
| Communication Baud Rate | 1200,2400,4800,9600,19200 |
| Communication Data | 8,N,1 |
| Conversion/Settling Time (s) | 0.5 |
| Frequency (Hz) | 50 |
| Measuring Current (RTD) (mA) | 0.21 |
| Operation Environment | 0 to 50°C, 20 to 90%RH |
| Power Supply Voltage (V) | 90-240 AC |
| Protection Code | IP44 Protocol : RS485 (Modbus RTU) |
| Retransmission Output Maximum | 4 to 20mA, load 500Ω |
| Retransmission Output Minimum | 0 to 10VDC, load 1kΩ |
| Storage Environment | 0 to 60°C, 20 to 90%RH |
