-3 Phase 3/4 lines measuring meter
-V(Line), V(Phase), A(Phase), Hz, PF, kW, kVAR, kVA, kWh, kVARh, kVAh, Demand and Peak demand measuring
-Clearly vision with LCD Display
-Programmable multiplier of CT& PT ratio
-4-20mA and Pulse output provided.
-Panel mounting
-Interface with computer by RS-485, Modbus Protocol.

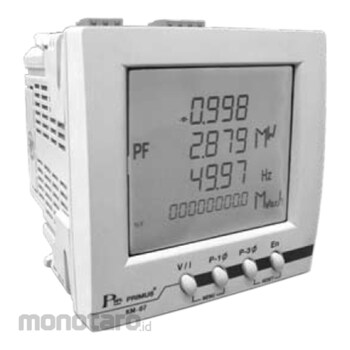

Primus Multifunction Power Meter
#Grup produk P111518423
Spesifikasi
| Ambient | < 75 % RH |
|---|---|
| Communication | RS-485, MOBUS RTU |
| Dimensions (mm) | 96x96x100 |
| Display | LCD |
| Frequency Accuracy (Hz) | ±0.1 |
| Input Current | 20mA to 5A, 20 to 5000A with CT |
| Input Current Range (VA) | <0.1 |
| Input Frequency (Hz) | 45 to 55 |
| Input Range Frequency (Hz) | 50 |
| Input Range Power Supply Voltage (V) | 220AC ±15% |
| Input Voltage | 250 VL-N, 400 VL-L |
| Input Voltage Range (V/A) | <0.1 |
| Phase Active Power Accuracy | ±1% FS (0.05 FS < P < FS) |
| Phase Apparent Power Accuracy (VA) | ±1% FS (0.05 FS < S < FS) |
| Phase Current Accuracy | ±1% FS (0.05 Ib < Iph < Ib) |
| Phase Reactive Power Accuracy (kVAR) | ±1% FS (0.05 FS < Q < FS) |
| Phase Voltage Accuracy (V) | ±1% FS (0.1 Vb < Vph < Vb) |
| Standard Size (mm) | 96x96x80 (DIN 1/4) |
| Supply Voltage | 1Phase / 3 Phase 4 Line |
| Working Temperature (°C) | -10 to 60 |
