-V, A, Hz, PF, kW, kVAR, kVA, kWh, kVARh, kVAh and max demand measuring
-Clearly vision with LCD Display
-75 Aac and 400 VLine to Line direct input on instrument terminals.
-Interface with computer by RS-485, Modbus Protocol.

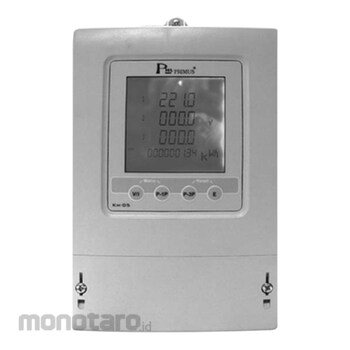

Primus Multi Function Energy Meter
#Grup produk P111518405
Spesifikasi
| Accuracy Frequency (Hz) | ±0.1 |
|---|---|
| Accuracy PF | ±0.002 ( 0.1Ib < Iph < Imax ; PF>0.5 lag ; PF>0.8 lead) |
| Accuracy Phase Active Power (kW) | ±1 % FS |
| Accuracy Phase Apparent Power (kVA) | ±1 % FS |
| Accuracy Phase Current | ±1 % FS |
| Accuracy Phase Reactive Power (kVar) | ±1 % FS |
| Accuracy Phase Volt | ±1 % FS |
| Auxilliary Supply Standard Frequency (Hz) | 50 |
| Auxilliary Supply Standard Voltage (V) | 220 ±15% AC |
| Display Type | LCD Display |
| Humidity | <75% |
| Input Current (A) | 75 |
| Input Frequency (Hz) | 45 to 55 |
| Input Loading Current (VA) | Less Than 0.1 |
| Input Loading Volt (VA) | 0.1 |
| Input System | 3 Phase / 4 Wire Or 3 Phase / 3 Wire |
| Input Voltage (V) | 250 VLN (Vb) / 400 VLL |
| KWh Register | Class 1 (IEC 61036) |
| Storage Temperature (°C) | -25 to 80 |
| Temperature Operating (°C) | -10 to 60 |
