RMN-002 is the Master Module that will be the connector between digital input and output from outside and the remote control system through 2 Wire system. Master Module will have 8 channels of digital input and output and can be connected together with Expansion Input/ Output Module as highest at 32 channels.
The Alarm channel displays on LED in case 2 Wire system has problem, it needs at least two Master Modules to install on the starting point and the end.

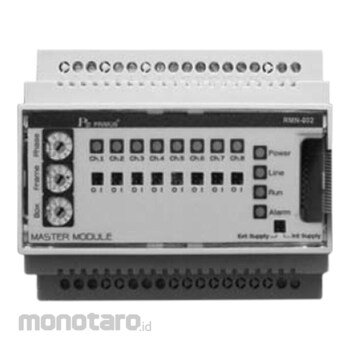

Primus Master Module
#Grup produk P111518362
Spesifikasi
| Display Status LED Green | Power Will Show When Supplying The Electric To The Channel Generator |
|---|---|
| Display Status LED Red | LINE will show when connecting the module to 2 wire system, alarm will show when there is the problem in the system |
| Display Status LED Yellow | Run Will Show When Receiving The Data Frame With No. Of Phase, Frame And Box Exactly As The Setting Values |
| Display Status LEDs Alarm Relay | Will show as the touch screen NC and NO that show when the module signal works normally |
| Electrical Power Rate (VA) | 3 |
| Electrical Supply Voltage (V) | 220AC ±10% |
| Expansion Amount | 3 Modules |
| External Electrical Supply Voltage (V) | 12 to 24DC (for I/O Module) |
| Frequency (Hz) | 50 to 60 |
| Setting | Spin Adjust Button |
| Setting Box | Getting The Value From 1-8 To Set The Box Position |
| Setting Frame | Getting The Value From 1-8 To Set The Frame Position |
| Setting Phase | Getting The Value From 0-8 To Setup The Working Mode |
| Signal Channel | 8 Channel |
| Test Voltage (kV) | 2.5 |
| Working Temperature (°C) | -20 to 60°C |
