-Proximity Switch, Photoelectric sensor or Encoder input Direct on Instrument terminal
-Easy to see with 5 digit of red LED 7 segment display
-Provide 3 of alarms relay output (Maximum)
-Lock of value setting is supportable.
-Select input type by keypad.
-Interface with computer by RS-485, Modbus Protocol.

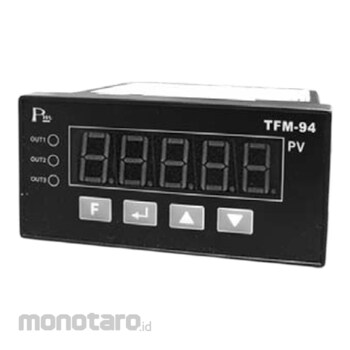

Primus Digital Panel Meters
#Grup produk P111518089
Spesifikasi
| Alarm Hysteresis | 0 - 999 |
|---|---|
| Analog Transfer Current (mA) | 4-20 |
| Analog Transfer Voltage (V) | 0-10 |
| Baud Rate (bps) | 1200, 4800, 9600, 19200 |
| Communication | RS – 485, Protocal MODBUS |
| Digital input | Ri = 1KΩ (12V, 10mA) Isolate; -19999 ~ 99999; Up to 4 Point |
| Dimensions (mm) | 48x96x100 |
| Humidity | 20 – 80%Ur Non-Condensing |
| Input | Proximity Switch, Photoelectric Sensor, Contact, Encoder, Hertz |
| Memory | EEPROM; <100Hz, <1KHz, <2KHz, <5KHz, <10KHz,> 10KHZ; Up to 3 Contact Relay ; 5A/250Vac |
| Operating Temperature (°C) | 0-55 |
| Storage Temperature (°C) | 0-60 |
| Supply Sensor Current (mA) | 120, 50 |
| Supply Sensor Voltage (V) | 12, 24 |
| Supply Voltage (V) | 90-240 AC |
