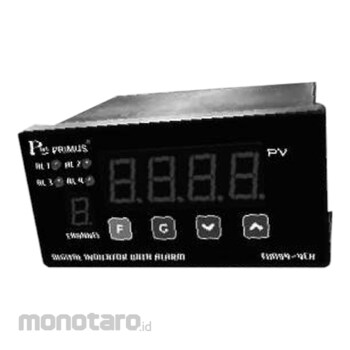

Primus Channels Digital Indicator
#Grup produk P111517929
Spesifikasi
| Alarm | Absolute High Low Outside, Absolute High. Absolute Low. Absolute Low Inside |
|---|---|
| Alarm Setting | 0-100% at the highest scale |
| Compensate Setting | 0-100% at the highest scale |
| Degree | Can select as C° or F° for the input type of Thermocouple, PT100 and PTC |
| Digits | 0, 0.0, 0.00, 0.000 |
| Display | 4 digits 7 segment and 1 digits 7 segment (display input channel); red LED show the alarm status |
| Electrical Supply Pressure (V) | 90-250 AC |
| Input Current (mA) | 4-20, 0-20, 0-100 |
| Input Thermocouple | K, J, R, T, N, S, E PT100, PTC |
| Input Voltage | 0-100 mV, 0-1 VDC, 0-10 VDC |
| Memory | EEPROM |
| Parameter Locks Function | Parameter Lock, All Lock, Off Lock |
| Punctuality | 0.2% FS at 25°C |
| Relay Alarm | SPST |
| Relay Alarm Current (A) | 5 |
| Relay Alarm Voltage (V) | 250 AC |
| Responding Speed (s) | 0.5 |
| Working Temperature (°C) | 0-60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
-Capable to display the temperature or Processes-Display in 7 segments in red color with clearly visible 4 digits and 7 segment of 1 digit red color to display the channel of input
-Capable to select receiving 4 inputs in the same device
-Receive input from Thermocouple, PT100, PTC, pressure and flow
-Separate into 4 alarms (1:1)
-Provide LED to show alarm status
-Connect to computer through RS 485, MODBUS Protocol
