Twotrees TB6600 Stepper Motor Driver Nema 23 Nema17 4A DC9-42V for NEMA23 Motor Router Controller for 3D Printer CNC Engraving Machine

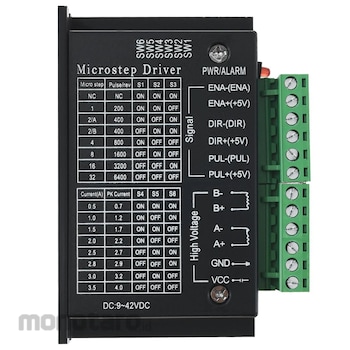

This is a professional two-phase stepper motor driver. It can realize forward and reverse control, select 7-speed subdivision control through 3-position DIP switch, (1, 2/A, 2/B, 4, 8, 16, 32) select 8-level current through 3-position DIP switch Control, (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A) suitable for driving 57 and 42 two-phase and four-phase hybrid stepping motors. It can drive the motor with low vibration, low noise and high speed.
TWOTREES Stepper Motor Driver
#Grup produk P111511873
Spesifikasi
| Input Voltage (V) | 9-40 (DC) |
|---|---|
| Input Current (A) | 5 (Recommended to use switching power supply power) |
| Output Current (A) | 0.5-4.0 |
| Maximum Power Consumption (W) | 160 |
| Working Temperature (°C) | -10~45 |
| Gas | No flammable gas and conductive dust |
| Humidity | No condensation, no water drops |
| Storage Temperature (°C) | -40~70 |
| Subdivided | 1, 2/A, 2/B, 4, 8, 16, 32 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Original brand new stepper motor driver chip- The current is selected by the DIP switch
- Large-area heat sink is not afraid of high temperature environment use
- Seven subdivisions are adjustable
- Automatic half flow to reduce heat generation
- The interface adopts high-speed optocoupler isolation
- Strong anti-high frequency interference ability
- Input voltage anti-reverse protection
- Overheating, overcurrent short circuit protection
