YAMABISHI Volt Slider Transformer
#Grup produk P111510616
Spesifikasi
| Ambient Humidity (% RH) | 35 to 85 |
|---|---|
| Capacity (kVA) | 0.5 (maximum) |
| Cooling Method | Self cooling |
| Dimension A (mm) | 139 |
| Dimension B (mm) | 116 |
| Dimension C (mm) | 130 |
| Dimension D (mm) | 104 |
| Heating Capacity (kcal/hour) | 21 |
| Input Frequency (Hz) | 50/60 |
| Input Voltage (V) | 100 |
| Maximum Current (A) | 5 |
| Number of Phases | Single wire 2 wire |
| Output Fluctuation (%) | 5 or less |
| Output voltage (V) | 0 to 130 |
| Rated Lifetime (hour) | 4 |
| Resolution | 0.6V |
| Temperature rise | (Coil) 65°C, (Iron core) 55°C |
| Type | Stationary type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- When using continuously for 4 hours or more, use at 70% or less of the current capacity. - For super continuous use (8 hours or more), use 50% as a guide. - When using an output of 100V or more, allowable current x 100V ÷ output voltage.Feature

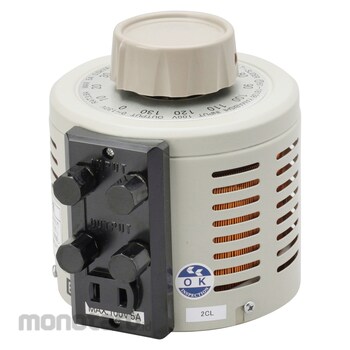

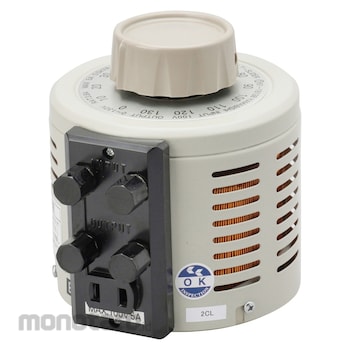

A copper wire is radially wound around a toroidal iron core, and a carbon brush made of special wiring is slid. This is a voltage regulator that can continuously vary the output voltage from 0V to any pressure without intermittence.Use
Adjustment of overvoltage and undervoltage. Rotation speed adjustment. Temperature control.Ulasan Produk
