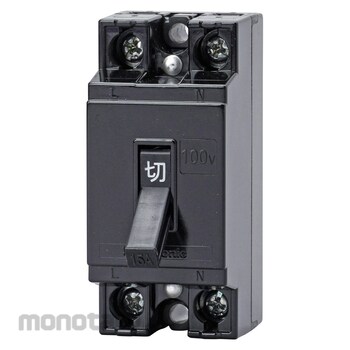

Panasonic Safe Breaker
#Grup produk P111461587
Spesifikasi
| Connectable Stranded Wire (mm²) | 5.5 to 8 |
|---|---|
| Connectable Wire: Single Wire (Φmm) | 1.6 to 2.6 |
| Frame (AF) | 30 |
| Main application | For branching light |
| Number of Poles/Elements | 2P1E |
| Overcurrent Tripper Type | Thermal type |
| Protective Function | Overcurrent, short circuit |
| Rated Breaking Capacity (kA) | 1.5 |
| Rated Voltage (V) | AC100 |
| Terminal Shape | Terminal without solder |
| Tightening Torque (N m) | 1.6 to 2 |
| Tray Dimensions (WxLXD) (mm) | 32x70x36 (55.5 including handle) |
| Type | HB-1E |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Reverse connection is possible.- For the wire to be used, select a compatible wire size that matches the rated current value.
- Use 20A for general branch circuits and 30A for high-capacity dedicated circuits. Please consider the characteristics of the device (steady current, inrush current) when using 15A or less for device protection.
- When the breaker trips, the handle returns to the OFF position.
- When using a thin stranded wire such as an electric wire for equipment, use a bar crimping terminal.
