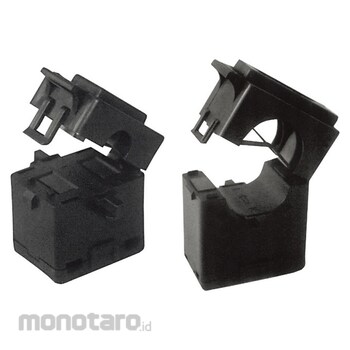

Multi Split Type AC Current Sensor
#Grup produk P111453223
Spesifikasi
| Accuracy | ± 1.0%/rated current |
|---|---|
| Applicable Frequency (Hz-kHz) | 10 to 5 |
| Applicable Wire Diameter (mm) | (Maximum) 10x7.9 |
| Circuit Voltage Used (V) | AC600 or less |
| Dimensions (mm) | 33x41.3x25.3 |
| Insulation Resistance (MΩ) | DC500V / 100 or more (between outer case and output) |
| Maximum Allowable Continuous Current | AC100Arms continuous |
| Operating Temperature/Humidity Range | -10 to 60 °C 80% RH or less (no condensation) |
| Output Terminal | M3 mounting screw |
| Phase Difference | 1.6°±0.5°(10Ω/5A/50Hz), 1.3°±0.5°(10Ω/5A/60Hz) |
| Protection | (Open) 7.5V clamp element |
| RoHS Directive | Correspondence (Corresponding to 10 Substances) |
| Standard | RoHS compliant |
| Suitable Current (A) | AC 0.01 to 5 (50/60Hz) |
| Withstand Voltage (V) | AC2200 / 1 minute (between outer case and output) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Ideal for measuring small currents such as 5A circuits. Fall prevention with wire stopper. A dedicated connector is not required for terminal output. Safety design with open protection element and flame resistance.Ulasan Produk
