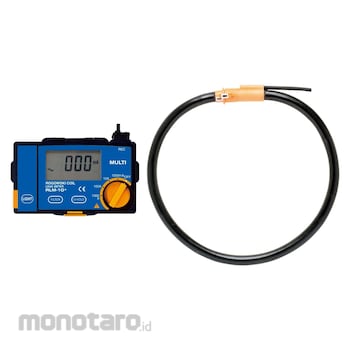

Multi Flexible Leakage/Line Current Tester
#Grup produk P111453205
Spesifikasi
| AC Current (A) | 1000m/10/100/1000 |
|---|---|
| Cable Length (m) | 2(CT) |
| Clamp Diameter (mm) | 210 |
| Dimensions (Width x Height x Depth) (mm) | 159x105x53 |
| Filter | Low pass filter (attenuates from about 150Hz) |
| Function | Recorder output, auto power off, data hold, backlight |
| Height (mm) | 105 |
| Included Accessories | 6 AA alkaline batteries, 1 carrying case, 1 instruction manual |
| Inner Diameter (mm) | 210 (CT) |
| Length (mm) | 53 |
| Minimum Resolution (mA) | 0.1 |
| Output (mV) | DC 100 (full scale of each range) |
| Power Input | AA alkaline battery x 6 |
| Power Supply | 6 x AA alkaline batteries |
| Sample Rate (time/s) | 2 |
| Width (mm) | 159 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- The RLM-10+ flexible ZCT is an air-core coil that does not use magnetic materials. - Be careful of the measurement location as it is more susceptible to external magnetic fields and residual current than normal leakage current measurement.Feature
Flexible ZCT that can be bent freely is used. Unlike conventional products, this highly accurate flexible leak current meter is less affected by external magnetic fields and residual current.Use
For leakage detection of the main trunk. For wide and narrow spaces between lines.Ulasan Produk
