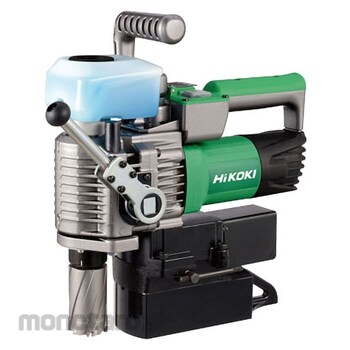

HiKOKI Magnetic Drill Press
#Grup produk P111419566
Spesifikasi
| Cable Length (m) | 3 Cores and 5 |
|---|---|
| Current (A) | 10.6 |
| Drilling Capacity to Steel (mm) | 10.5 to 15 / plate thickness 16, 16 / plate thickness 25, 18 to 40 / plate thickness 50 |
| Electromagnet Dimension (mm) | Square 67x192 |
| Height (mm) | 318 |
| Included Accessories | Center pin, hex hole set screw (M10), nut (M10), hex bar spanner (3 mm, 5 mm 1 each), cutting agent (0.3 L / water soluble), spanner (13 x 17 mm), belt, sub handle, case |
| Maximum Cone Thrust (kN) | 2.92(298) |
| Maximum stroke (mm) | 65 |
| Minimum Suction Plate Thickness (mm) | 6 |
| Motor | Single phase series winding commutator motor |
| Moving distance (mm) | (Front and back) 14; (Left and right) 14 |
| Power Consumption (W) | 1010 |
| Power Input (V) | Single phase 100 |
| Spindle Speed (rpm) | 950 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Low-length type with plenty of drilling capacity (40 x50 mm). Compatible with a wide variety of drilling tasks thanks to its rich variety of steel cores. The center pin has a large amount of protrusion, making it easy to align the holes.Ulasan Produk
