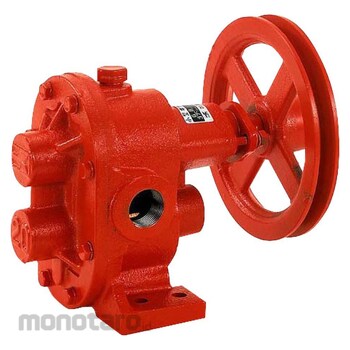

Koshin Geared Pump
#Grup produk P111411908
Spesifikasi
| Connection Thread | Parallel thread for pipe |
|---|---|
| Dimension B (mm) | 165 |
| Dimension C (mm) | 130 |
| Dimension D (mm) | 20 |
| Dimension D1 (mm) | 152 |
| Dimension F (mm) | 97 |
| Dimension H (mm) | 179 |
| Dimension L (mm) | 201 |
| Dimension M (mm) | 25 |
| Dimension N (mm) | 9.5 |
| Dimension P (mm) | 50 |
| Dimension S (mm) | 25.5 |
| Discharge Pressure (MPa) | 0.1 to 0.3 |
| Material | Cast Iron |
| Maximum Pump Rate (L/minute) | 37 |
| Opening Diameter D (mm) | 20 |
| Rotation Speed (rpm) | 200 to 600 |
| Suction Head (m) | less than 4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Please check the model size carefully before purchasing. - Please prepare a general-purpose motor, V-belt, etc. separately as it cannot be used with this machine alone. - Liquids of 5 to 60 degrees can be used.Feature
A pump with a simple structure, light weight, and small size. It can be widely used in all industries from industrial use to agriculture and fishery. Replenishment of drainage and cooling water for cleaning water stains on ships Material: Cast ironUse
For the transfer of various liquids such as water and oilUlasan Produk
