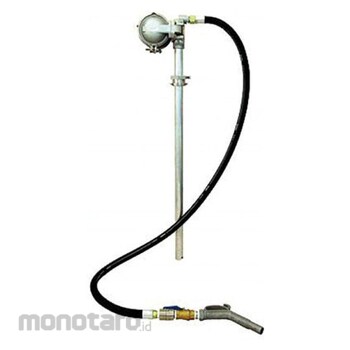

AQUA SYSTEM Diaphragm Pump
#Grup produk P111406304
Spesifikasi
| Air Consumption (L/minute) | 250 |
|---|---|
| Applicable Viscosity (cP) | 4000 |
| Compressor (Hp) | 3 |
| Conform to | Explosion-proof type |
| Connector Diameter | Rc3/4 |
| Driving System | Air type |
| Hose Inner Diameter (mm) | 19 |
| Hose Length (m) | 2 |
| Included Accessories | Ball valve nozzle, oil-resistant rubber (19 x 2m), suction pipe for drums, ground wire |
| Lifting Height (m) | 45 (push up) 2 (suction) |
| Material | Body/Nozzle = AL, Bs, SUS Diaphragm = TPC-ET Packing = NBR, FKM |
| Maximum Pump Rate (L/minute) | 48 (at 1cP) |
| Operating Pressure (MPa) | 0.3 to 0.5 |
| Operating Temperature Range (°C) | 0 to 60 |
| Suitable Model | For 200L closed drums |
| Suitable fluid | Oil, Kerosene, Light Oil, Gasoline |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Since it is not a type that applies internal pressure to the drum can, it can be used without sealing the can like an air pressure pump.Due to the high lift height, it can be transported to high places or long distances.
