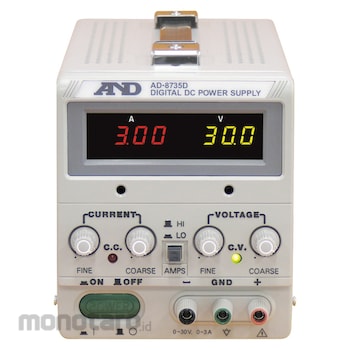

AND DC Power Supply
#Grup produk P111405785
Spesifikasi
| AS ONE Part Number | 1-5018-12 |
|---|---|
| Accuracy | Voltage value display = ± (0.5%rdg+2dgts)/Current value display = ± (1.0%rdg+5dgts) |
| Constant Current (DCCC) | Input fluctuation = ±(0.2%+3mA) or less (AC100V= ±10%) Load fluctuation = ±(0.2%+3mA) or less (0 to 100% load fluctuation) Ripple noise = ±3mArms or less (5Hz to 1MHz) |
| Constant Voltage (DCCV) | Input fluctuation = ±(0.01%+3mV) or less (AC100V= ±10%) Load fluctuation = ±(0.01%+3mV) or less (0 to 100% load fluctuation) Ripple noise = ±0.5mVrms or less (5Hz to 1MHz) |
| Dimensions WxHxD (mm) | 128x145x285 (excluding protrusions) |
| Display | 3.5 digit light emitting diode digital display |
| Included Accessories | 1 power cable (with 3P to 2P conversion adapter), output cable, short bar, instruction manual |
| Input Fluctuation | Constant voltage characteristics (CV): ±(0.01%+3mV) or less (AC100V±10%)/Constant current characteristics (CC): ±(0.2%+3mA) or less (AC100V±10%) |
| Input Voltage (V) | AC 100±10%, 50/60Hz |
| Load Fluctuation | Constant voltage characteristics (CV) = ±(0.01%+3mV) or less (load fluctuation 0 to 100%)/Constant current characteristics (CC) = ±(0.2%+3mA) or less (load fluctuation 0 to 100%) |
| Operating Temperature/Humidity Range | 0 to 40 °C, 80% RH or less (no condensation) |
| Output Current (A) | DC0 to 3 |
| Output voltage (V) | DC0 to 30 |
| Power Consumption (V/A) | About 200 |
| Resolution | Voltage value display = 0.1V/Current value display = 0.01A |
| Ripple, Noise | Constant voltage characteristics (CV) = ±0.5mVrms or less (5Hz to 1MHz)/Constant current characteristics (CC) = ±3mArms or less (5Hz to 1MHz) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Tracking operation is possible. When two units are connected in parallel, they can be used as a DC 30V, 6A power supply, and when connected in series, they can be used as a DC 60V, 3A power supply. Digital displayUlasan Produk
