Compact, energy saving fume hood without ducting system.
- Independently tested and complies with AFNOR NFX 15-211 standard
- Average Inflow Air Velocity: 0.5m/s
- Easy Filter change
- Sentinel-Microprocessor with LCD-Display, air velocity alarm and 24-hour-clock
- Fluorescent lighting provides superior illumination of the work zone
- Sloped acrylic front window
- With transparent back wall (for type SPD-4B1)
- Acrylic side walls
- ISOCIDE antimicrobial coating on all painted surfaces minimises contamination.
- Stainless steel spill-retaining work top.
- Sampling port
- Pass-through ports in the back wall
- Pre-filter made of polyester fibre, EU3 rating is included
Hood is delivered unassembled. On-site assembly can be completed in 60 mins. Without tools.
Options on request:
Support stands, installation.

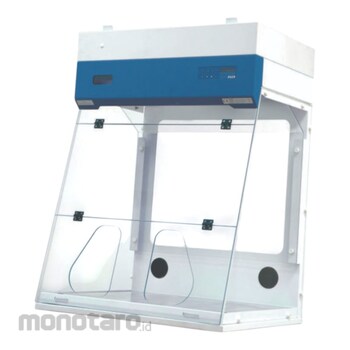

ESCO Ascent Opti Laboratory Fume Hood
#Grup produk P111390702
Spesifikasi
| Cabinet Full Load Amps (FLA) | 0.6 |
|---|---|
| Carbon Filter Weight (kg) | 2x9.1 each |
| Control System | Esco Sentinel Silver Microprocessor Controlle |
| External Dimension (WxDxH) (mm) | 1140x700x1125 |
| Fluorescent Lamp Intensity (Lux) | >350 at work surface level |
| Fluorescent Lamp Intensity (foot-candles) | (>28 at work surface level |
| Heat (BTU/hour) | 300 |
| Hood Construction | Main body : 1.2mm 18ga electrogalvanized steel with white oven-baked epoxy-polyester Isocide antimicrobial powder-coated; Front Window : 6mm Acrylic; Side Walls : 9.5mm Acrylic, Work Top : 1.5mm 16ga stainless steel type 304, with 4B finish |
| Inflow Velocity (m/s) | Initial Setpoint: 0.50 |
| Internal Dimension (WxDxH) (mm) | 1116x651x855 |
| Power Consumption (W) | 88 |
| Sash Type | Hinged |
| Size (m) | 1.2 |
| Sloped Front (°) | 13 |
| Sound Emission (dBA) | <58 at initial blower speed setting measured at typical operator work position |
| Standard Filtration Element | Pre-filter : Disposable, non-washable polyester fibre, 85% arrestance, EU3 rated; Main filter : Activated carbon with granular media bed |
| Voltage (V/Hz) | 220-240/50 |
