1x Total station
2x Alumunium Tripod
1x Prisma Polygon
1x Prisma Single
1x Stik / pole

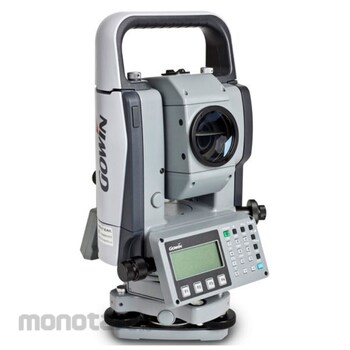

Gowin Total Station
#Grup produk P111388327
Spesifikasi
| 2 Prism (m) | 2700 |
|---|---|
| Compensating Range | +/-3′ |
| Detection | 2 horizontal , 1 vertical |
| Field of View (inch) | 1.30 |
| Image | Erect |
| Length (mm) | 150 |
| Magnification | 30x |
| Measurement Time (mm) | 1: 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) |
| Method | Absolute reading, liquid surface reflective profile sensor reading type |
| Minimum Focus Distance (m) | 1.3 |
| Minimum Reading (inch) | 1/5 |
| Objective Lens Diameter (mm) | 45 (EDM:500) |
| Prism Mode | +/-(2mm + 2ppm x D)m.s.e. |
| Range 1 Prism (m) | 2000 |
| Resolving Power (inch) | 3 |
| Standard Deviation Accuracy (inch) | 2 (0.6mgon) |
| Type | Single Axis |
