Since it is an air motor type that does not use electricity, it can be used as a product to reduce welding fume concentration.
Since it uses compressed air as its power source, it can be used safely even in environments where there is a risk of ignition or explosion.
The air hose has a one-touch air coupler for easy operation. It can be used immediately by opening the valve.
The motor is a compact, lightweight, long-life air motor.
The aluminum blades that come as standard are resistant to solvents and heat, and are easy to clean. In addition, it is less likely to produce sparks when it collides with a foreign object.

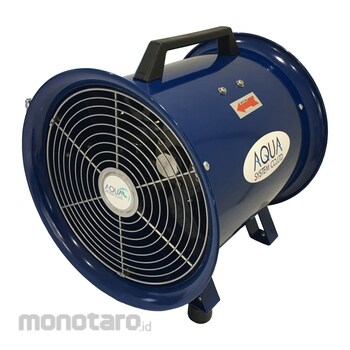

AQUA SYSTEM Oil-free Air Motor Type Axial Flow Blower
#Grup produk P111376289
Spesifikasi
| Material | Body and wings: Steel, resin |
|---|---|
| Type | Axial flow type |
| Operating Temperature Range (°C) | 0 to 60 |
| Operating Pressure (MPa) | 0.4–0.6 |
| Blade Diameter (cm) | 30 |
| Air Connection | Nitto Kohki 20PM |
| Air Consumption (m³/minute) | 0.45 |
| Air Volume (m³/minute) | 200 |
| Airflow Adjustment | Stepless squeezing |
| Compressor (Hp) | 5 |
| Correspondence | Explosion-proof type |
| Drive System | Air Type |
| Fan outer diameter (mm) | 300 |
| Number of Blades | 6 sheets |
| Part Number | 247-7360 |
| Rotation Speed (rpm) | 2800 |
| Where to Use | Explosion-proof areas and places without power |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*For use in explosion-proof areas, please follow the instructions of the local fire department.Use
For welding fume ventilation work.For ventilation and air circulation in narrow spaces such as manholes and tanks. For exhaust gas from construction vehicles and heavy machinery.
