API Pneumatic 5/2 Way Solenoid Valve
#Grup produk P111373501
Spesifikasi
| Body | Anodised Aluminium |
|---|---|
| Flow (nl/minute) | 1100 (at 6bar with ΔP 1bar) |
| Fluid | Compressed air with or without lubrication. Lubrication, if started, must be continued |
| Manual override | Bistable |
| Mounting | In every position |
| Orifice (mm) | 8 |
| Plunger (mm) | 9 |
| Pressure Range (bar) | 1.5-10 |
| Response Time (ms) | Energizing : 45 (at 6bar); De-energizing : 19 (at 6bar) |
| Seal | HNBR |
| Size (inch) | 1/4 |
| Temperature Range (°C) | -10~+60 (standard) -25~+60 (BT) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

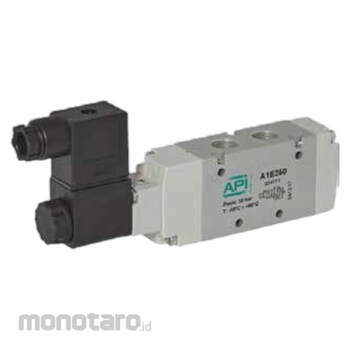

The A1E250 1/4 electrically operated valve is part of API Pneumatic UK's range of solenoid valves. This range of spool valves features static seals and high flow. A1E250 valves are ideally suited for panel or sub-base mounting for applications dealing with compressed filtered air, with or without lubrication. With a temperature range of -10°C to +60°C, the A1E250 valve can be supplied as ATEX upon request. For coils and connectors, please refer to our accessories page to order separately.
