Mshot Fluorescence Microscope
#Grup produk P111371628
Spesifikasi
| Camera Adapter | External 1X C-mount adapter |
|---|---|
| Eyepiece | Wide Field Plan eyepiece WF10X/23mm, high eye point; centering telescope |
| Fixed Stage Size (mm) | 240x260 |
| Focus System | Coaxial coarse and fine with limit and locking devices, low coaxial focus adjusting handle |
| Inclined (°) | 45 |
| Long Working Distance Condenser (mm) | 72 |
| Minimum Adjustment Gradation (µm) | 1 |
| Multi-Function Slide Glass Holder (mm) | 35, 90 |
| Nose Piece | Quintuple revolving Nose Piece with bearing inner location and anti-fungus device |
| Observation Tube Type | Binocular observation tube, diopter adjustable |
| Pupil Distance Adjust Range (mm) | 50-75 |
| Stage | With low-positioned X/Y coaxial control knob |
| Transmitted Illumination | NA 0.30 with triple phase contrast slider 10X/20X/40X, LED brightness contentiously adjustment, Black color light shield |
| Travel Distance (mm) | 135x85 |
| Type | Inverted |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

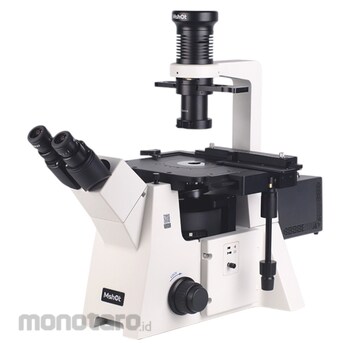

The inverted fluorescence microscope MF53-N adopts an excellent infinity achromatic independently corrected optical system and is equipped with a long working distance plan achromatic objective and a wide field of view eyepiece. Excellent weak fluorescence imaging, using a turntable fluorescence switching method, which can be configured with a variety of fluorescence including UV, V, B, G, Y, R, etc., and can observe DAPI, FITC, TRITC, Alexa Fluor series, Cy3 series, etc. Fluorescent dyes are widely used in CTC detection, FRET, cellular immunity and other fields.
Peringatan
Untuk lebih detail terkait kepastian ketersediaan stok harap menghubungi kami terlebih dahulu.Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
5 cube/6 cube fluorescence module:It is convenience to exchange filter cubes in turret flfluorescence module, satisfy observation of most fluorescence fluorophores.
Fluorescence illumination system:
Long working life broad-spectrum LED light source in high power offers enough and even brightness, instant on and off without preheating.
Semi-apochromat fluorescence objective:
The high numerical aperture Semi-apochromat fluorescence objectives have high definition and fluorescence transmittance properties. It can produce sharp images under bright field fluorescence and can meet the requirements of observation in various fluorescence fields.
