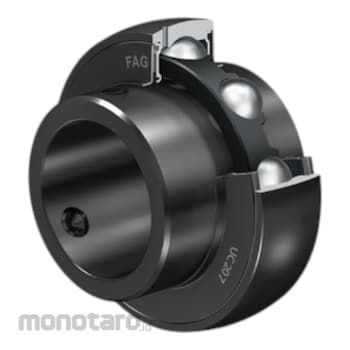

FAG Radial Insert Ball Bearing
#Grup produk P111361490
Spesifikasi
| Basic Dynamic Load Rating, Radial (Cr) (N) | 56000 |
|---|---|
| Basic Static Load Rating, Radial (C0r) (N) | 36000 |
| Bore Diameter (D) (mm) | 61.913 |
| Bore Diameter, Inch (d) (mm) | 61.912 |
| Calculation Factor (f0) | 14.3 |
| Distance Raceway (S) (mm) | 25.4 |
| Distance Thread (A) (mm) | 10 |
| Distance to Lubrication Hole (Ca) (mm) | 7.4 |
| Fatigue Load Limit, Radial (Cur) (N) | 1530 |
| Operating Temperature Max. (Tmax) (°C) | 100 |
| Operating Temperature Min. (Tmin) (°C) | -20 |
| Outside Diameter (DSP) (mm) | 110 |
| Rib Diameter Inner Ring (d1) (mm) | 76.48 |
| Sealing | Lip seal on both sides (vulcanised) (2RSR) |
| Sealing Total Width (C2) (mm) | 27.6 |
| Shape of Outer Surface | B |
| Width (B) (mm) | 65.1 |
| Width, Outer Ring (C) (mm) | 27 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Radial insert ball bearings UC, spherical outer ring, location by grub screws, RSR seals on both sides
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
