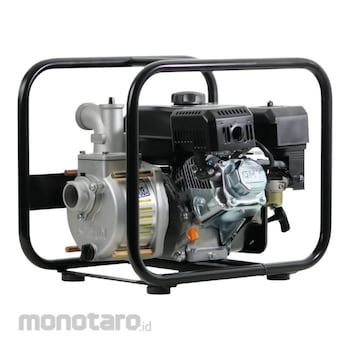

Koshin Dirty Water Pump (Pompa Alkon/Irigasi Sedot Lumpur)
#Grup produk P111358672
Sebelum PPN:
Rp6.599.900 - Rp6.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connection Thread | Outer Pipe Thread |
|---|---|
| Cubic Capacity (cm³) | 179 |
| Impeller & Volute Casing | FCD450 |
| Maximum Power (PS) | 4.8 |
| Maximum Power (kW) | 3.5 |
| Maximum Power (rpm) | 3600 |
| Maximum Suction Height (M) | 8 |
| Mechanical Seal | SiC (silicon carbide) x SiC |
| Motor | Koshin K180 |
| Motor Type | Air-cooled 4-stroke gasoline engine |
| Rated Power (HP) | 4.2 |
| Rated Power (kW) | 3.1 |
| Rated Power (rpm) | 3600 |
| Total Head (m) | 26 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Koshin STV-50X motor pump for moderately contaminated water is characterised by low fuel consumption and a low noise level; It is designed for processing water with a maximum particle size of 8 mm; It is suitable for water supply and construction. The mechanical seal is made of silicon carbide, which significantly increases the service life of the motor pump; The robust frame facilitates transport
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
-The tubular steel frame protects the motor from damage and makes the Koshin STV-50X easy to transport;-Powerful suction power;
-Economical fuel consumption;
-Wide fuel tank neck;
-Low noise level;
-3.6-litre fuel tank for continuous operation without refilling;
-The silicon carbide mechanical seal lasts 4-5 times longer than a conventional carbon-ceramic mechanical seal;
-Utilising the latest technology and wear-resistant materials developed in Japan;
-Long service life without loss of performance;
-Simple and easy commissioning without pre-filling the suction hose with water, simply fill the pump housing with water.
Use
Applications:– Guaranteed suction height of 8 meters*.
– Silicon carbide mechanical seal: 4-5 times more resistant than standard carbon ceramic mechanical seal.
– Ductile iron (FCD) for impeller & volute casing provides 10 times more erosion resistance than cast iron.
* At 0 m above sea level
