Housing with earthing lug for bolt M4 x 8 (Torx)
Free air power consumption, these values may be considerably higher at the operating point.

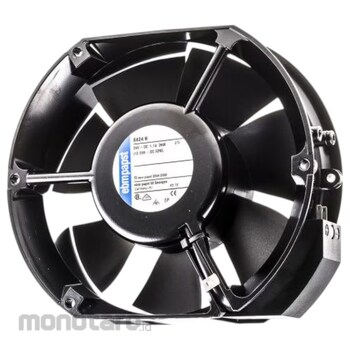

EBM-PAPST DC Axial Compact Fan (Kipas Aksial)
#Grup produk P111347384
Spesifikasi
| Nominal Voltage (V) | 24 (DC) |
|---|---|
| Speed (rpm) | 4000 |
| Minimum Ambient Temperature (°C) | -20 |
| Maximum Ambient Temperature (°C) | 55 |
| Air Flow (m³/hour) | 480 |
| Bearing | Ball bearings |
| Connection Line (mm) | 3.0x0.5 (Flat plugs) |
| Dimensions (mm) | 172x150x51 |
| Direction of Air Flow | Air exhaust over bars |
| Direction of Rotation | Left, looking at rotor |
| Housing Material | Die-cast aluminium |
| Input Power (W) | 26 |
| Lifetime L10 at 40°C (hour) | 70000 |
| Lifetime L10 at Maximum Temperature (hour) | 50000 |
| Locked-rotor Protection | Electronic blocking protection, with electronic motor current limit in the startup phase and when the rotor is blocked. |
| Material of Impeller | Fibreglass-reinforced plastic (PA) |
| Motor Protection | Protected against reverse polarity and locking. |
| Option | Speed Signal |
| Sound Power Level (B) | 7.1 |
| Sound Pressure Level db(A) | 63 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*Sample image (please check the manufacturer's website for details)Ulasan Produk
