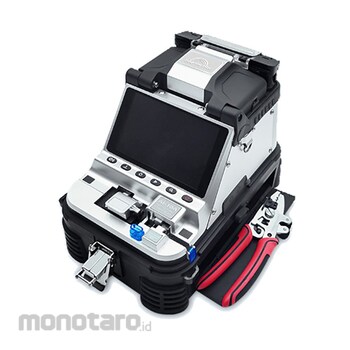

Signal fire fusion splicer AI-10A is a full-link integrated design of the fourth generation of optical fiber fusion splicer,it combines high-precision electric cleaver, optical fiber splicing into one, while integrating the OPM and VFL function, with the 8-in-1 signal fire stripper, can be combined with the work bench and work stool, making it a new generation of optical fiber fusion splicer in the real
sense of the world, small size, light weight, easy to operate.
Signal Fire Fusion Splicer
#Grup produk P111346020
Spesifikasi
| Cutting Length (μm,mm) | Coating layer 250, below: 8-16/coating layer 250-1000,16 |
|---|---|
| Fiber Alignment | Core/cladding |
| Fiber Diameter (µm) | Coating Diameter: 80-150/Coating Diameter: 100-1000 |
| Heat Shrink Tube (mm) | 60, 50, 40, 25 |
| Heating Mode (s) | 15 (can be customized according to the external environment) |
| Motor Number | 6 motors |
| Splicing Loss (dB) | SM : 0.02, MM : 0.01, DS/NZDS : 0.04 |
| Splicing Mode | Automatic focusing core alignment, conventional/high precision welding |
| Splicing Time (s) | 6 |
| Splicing Way | Automatic, semi-automatic |
| Tensile Testing | Standard 2N |
