Moulded case circuit breakers x160
Thermal magnetic trip unit, 2 versions:
- Z version: fixed thermal and fixed magnetic, collar terminal
- S version: adjustable thermal and fixed magnetic, cable lug terminal
- P version: fixed thermal and fixed magnetic, cable lug terminal
1P, 2P, 3P and 4P
Mechanical test button, lockable settings, integrated padlocking handle Ø 4mm (S version), needs accessory for DIN rail mounting.
Connection capacity
95 mm2 rigid cables
70 mm2 flexible cables
Comply with IEC 60 947-2.
Trip-free switches
Allows tripping at distance using a voltmetrical trip unit (optional) AC 22/23A.
Comply with IEC 60 947-3

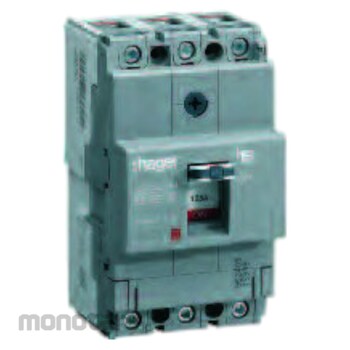

Hager Moulded Case Circuit Breaker x160
#Grup produk P111345720
Spesifikasi
| Connection Capacity Flexible Cable (mm²) | 70 |
|---|---|
| Connection Capacity Rigid Cable (mm²) | 95 |
| Fixed Internal | 1xIn |
| Fixed Magnetic | >10xIn |
| Rated Service Short-Circuit Breaking Capacity (kA) | 18 |
| Rated Voltage (V) | 400/415 AC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
