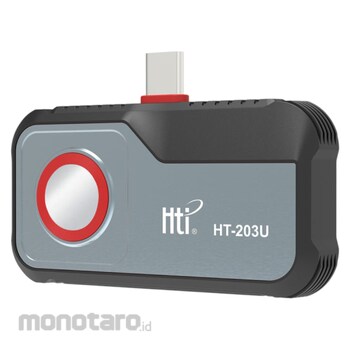

HTI Instrument Thermal Imager
#Grup produk P111338322
Spesifikasi
| Angle of View (°) | 50.0x37.2 |
|---|---|
| Dimensions (mm) | 46x70x14 |
| External Interface | USB Type-C, DC5V Power Supply |
| Focal Length (mm) | 3.5 |
| Image Frame Rate Frequency (Hz) | ≤25 |
| Infrared Image Resolution | 256x192 |
| NETD (mK) | ≤40 @25°C,@F/1.2 |
| Palette | White Hot, Black Hot, Blend, Iron, Dark Brown, Red Hot, Green Hot, Rainbow |
| Picture/Video Format | JPG/MP4 |
| Pixel Spacing (μm) | 12 |
| Power Consumption (W) | ≤0.36 |
| Protection Level | IP54 |
| Storage Temperature (°C) | -30 to +70 |
| Super Resolution (IFOV) (mrad) | 3.43 |
| Temperature Measurement | Point, Line and Regional, Temperature Measurement |
| Temperature Measurement Distance (m) | 0.3 to 3 |
| Temperature Measurement Range (°C) | -20 to 120 and 120 to 550 |
| Temperature Measurement Resolution (°C) | ±2 or reading ± 2% |
| Working Band (μm) | 8 to 14 |
| Working Temperature (°C) | -20 to +50 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Free Focus Mode- Support Brightness adjustment
- Support Contrast adjustment
- Support Camera/video
- Chinese, English, Russian Language
